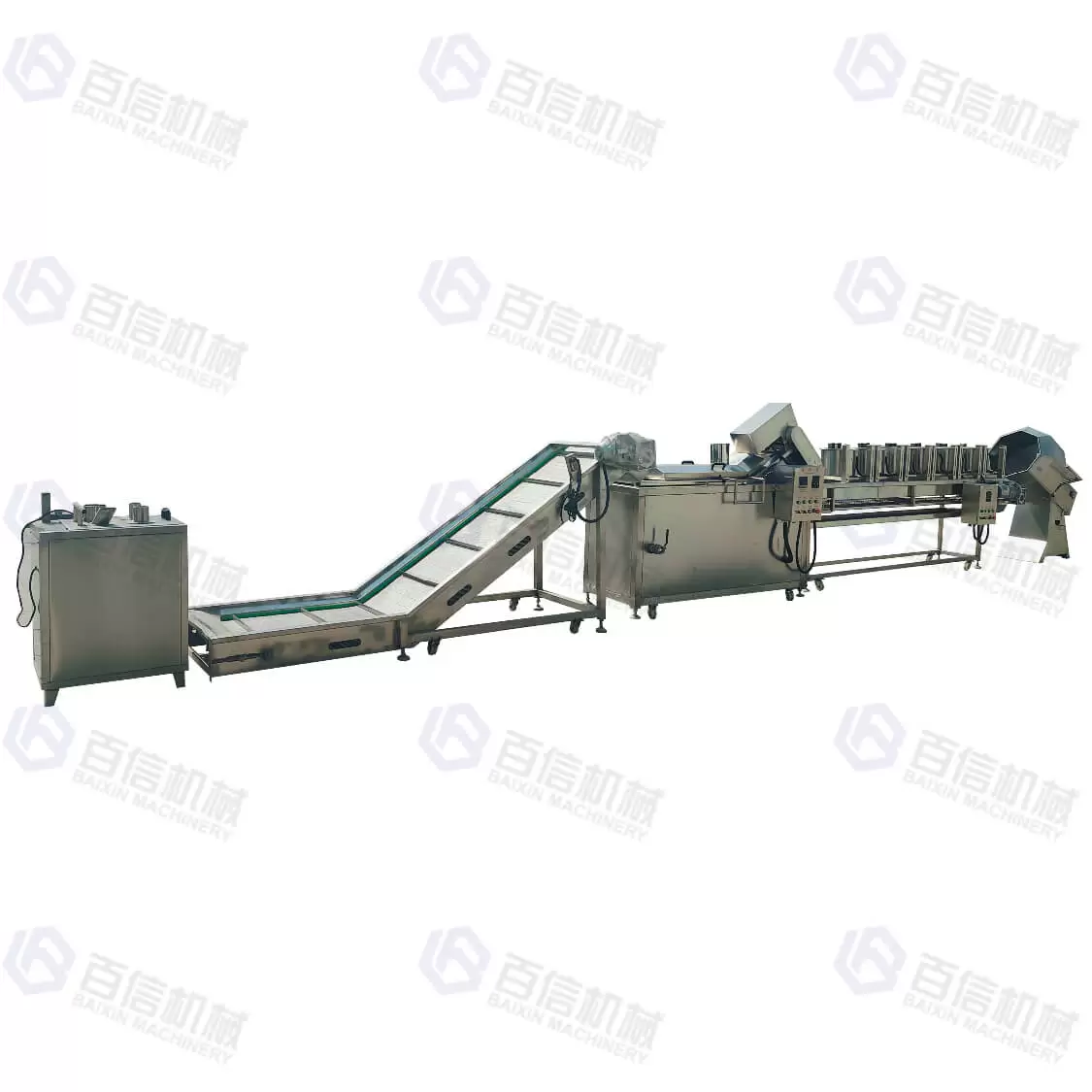

300kg/h Banana Chips Production Line

Product Type :
Banana Chips Production Line
Output :
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
254.3KW (Depends on output)
Applicable Materials :
Banana chips, Potato chips, French fries
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Automatic/ Continuous/ Large-Capacity/ Support Customization
Production introduction

Baixin has 15 years of experience in customized solutions for banana processing lines. Since its establishment, Baixin has been committed to providing the best banana processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.

1.We are a professional manufacture to produce banana chipsmaking machines.

2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.

3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.

4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.

5.All equipment in the production line is made of 304 stainless steel.

6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.

7.The size of banana chips are adjusted.

8.We can design floor plan of complete line you need depending on your area' s size.

Product components
No. Machine Name Function Advantage
1 Banana Slicing Machine Cutting the banana into slices, sizes adjustable from 1-5mm 1.Banana chips thickness 1-5mm can be adjustable.
2.Cutting surface is smooth without damage.
2 Elevating Conveyor For elevating and conveying the banana slices into next sugar soaking machine 1.The size can be customized
2.Conveying speed adjustable.
3 Sugar Soaking Machine Dipping in sugar or adding other additives to change the flavor of banana chips 1.You can use gas, electricity or diesel as power for this machine depending on your needs.
2.It can effectively protect original vivid color of the banana chips.
3.You can add additives according to your need.
4 Air Drying Machine Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon 1.The multi-layer mesh belt conveyor belt and special fan outlet completely remove the moisture on the surface of the banana slices.
2.Fan can be adjusted up and down.
5 Continuous Frying Machine For quick frying the banana slices around few minutes in 180°oil 1.Automatic lifting system, easy to clean.
2.Double mesh belt transmission to avoid the chips floating.
3.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life.
4.Electric or gas heating.
6 Vibration Deoiling Machine Through high frequency vibrating to achieve deoiling purpose, and also to convey the banana slices uniformly to next machine The de-oil time is adjustable.
7 Pre-cooling Machine Through high pressure wind blowing for pre-cooling and deoiling the banana slices 1.The multi-layer mesh belt conveyor belt and special fan outlet completely remove the oil on the surface of the banana slices.
2.Fan can be adjusted up and down.
8 Elevating Conveyor For moving banana chips to seasoning machine 1.The size can be customized
2.Conveying speed adjustable.
9 Seasoning Machine Spread the seasoning evenly over each banana chip 1.With spice tank, the flow of spice adjustable.
2.  You can add additives any you want even liquid such as oil, water etc.
3. Seasoning time can be controlled.
10 Automatic Weighing Packing Machine For packing the finished banana chips It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing.


Banana chips processing line flow chart

This set of production line is a new type of banana chips production line developed and developed by our company. This production line is made of high quality 304 Stainless Steel. PLC electrical control, safe and efficient.The production line adopts advanced technology, the output is high, and the ex-factory price is directly sold. This is the best choice for businesses and the most ideal device.

Technical Parameter
300kg/h Banana Chips Production Line
No. Machine Name Powder(kw) Size(mm)
1 Banana Slicing Machine 1.1 710x660x1085
2 Elevating Conveyor 0.75 2000x700x1600
3 Sugar Soaking Machine 20 3000x1200x1400
4 Air Drying Machine 10.1 4000x1100x1600
5 Continuous Frying Machine 200 8000x1200x2600
6 Vibration Deoiling Machine 0.5 1800x1000x1300
7 Pre-cooling Machine 13.6 5000x1200x1600
8 Elevating Conveyor 0.75 2000x700x1600
9 Seasoning Machine 1.5 2000x800x1600
10 Weighing Packaging Machine 6 3500x2700x4000
Support customization according to customer requirements.
