Air Drying Machine

Describe Parameter Video About us Evaluation

Production introduction

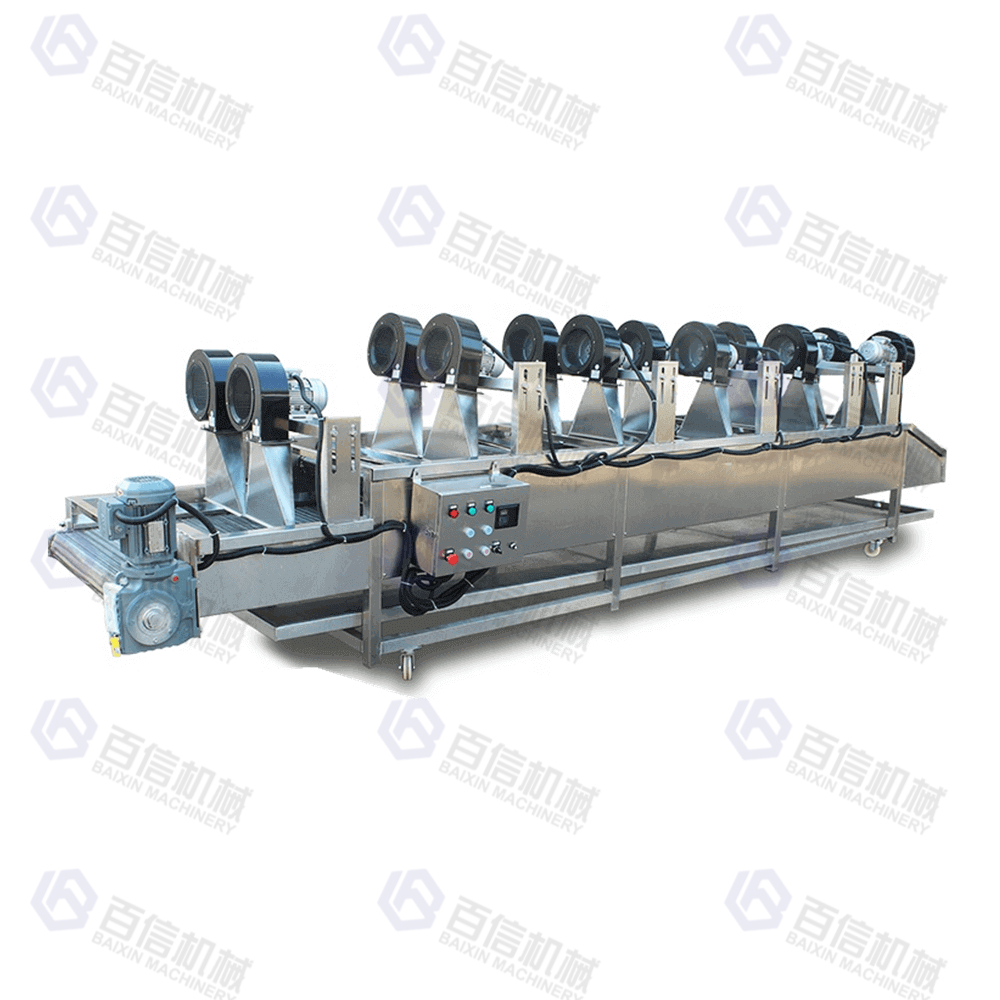

This air drying machine through repeated turning and high pressure wind blowing, which can effectively remove water droplets on the surface of material in short time, greatly shorten the time of preparing work for labeling or packaging or other processing.

Product components

Features of air drying machine:

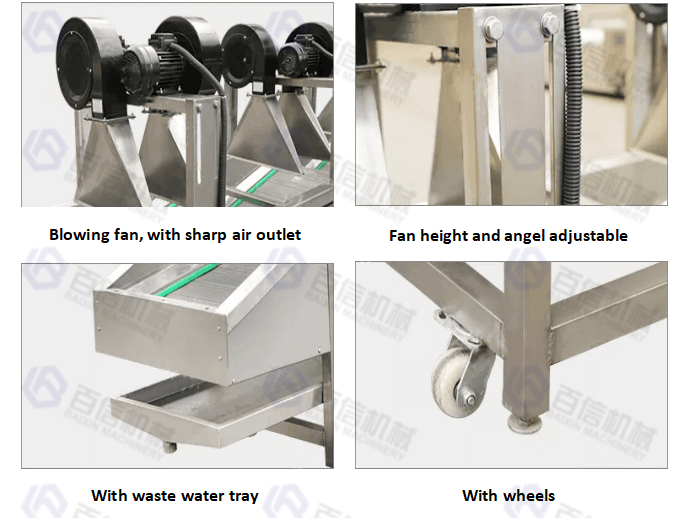

1.With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying.

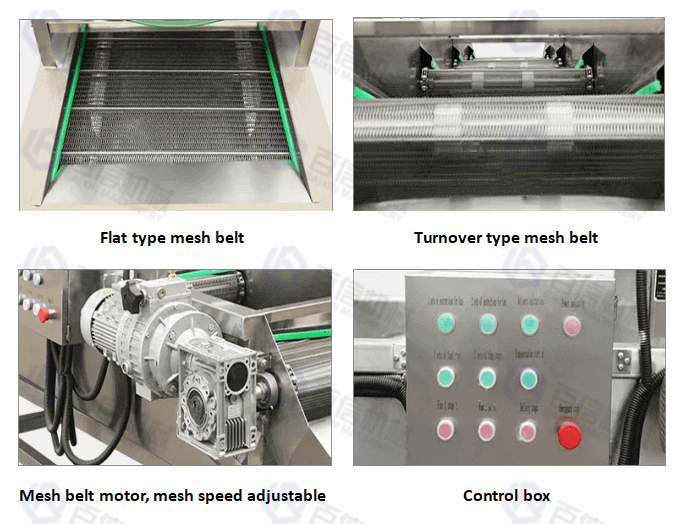

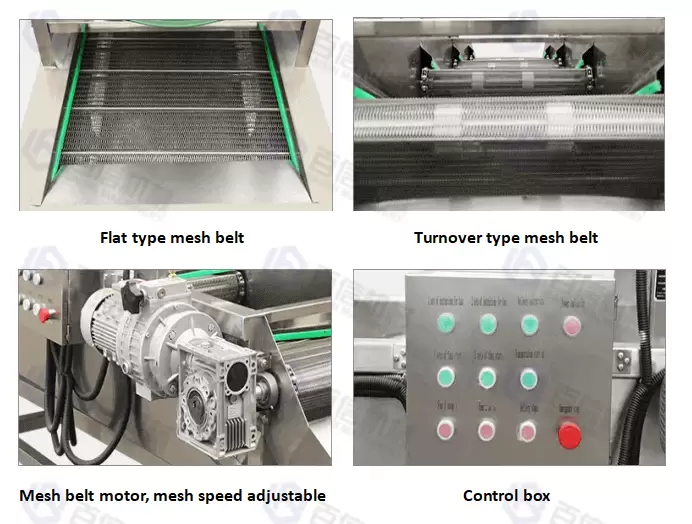

2.With SUS 304 mesh belt, mesh belt width could be 500-1000mm.

3.Mesh speed adjustable by gearbox.

4.With turnover type or flat type mesh belt, suitable for different products drying.

5.Each unit of blowing fan can be controlled separately.

6.Suitable for production line, continuously working.

Application of the air drying machine:

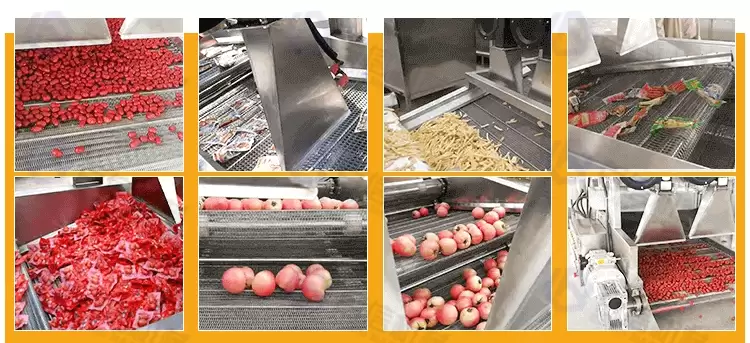

This air drying machine is widely used in fruit and vegetable food production lines. It can also be used for drying small packaging bags of meat products, vegetable products after sterilization, also plastic trays or crates.

Technical Parameter

Model	Dimension(mm)	Blet width (mm)	Power(kw)	Capacity(kg/h)
BX3000	320011001500	700	5.6	300-500
BX4000	420011001500	700	7.1	500-800
BX5000	520011001500	700	9	800-1500
BX6000	620011001500	700	10.5	1300-2000

Related Videos

Air dryer introduction

Date palm cleaning air drying line

Fruit washing air drying line

Jujube cleaning and air drying production line
