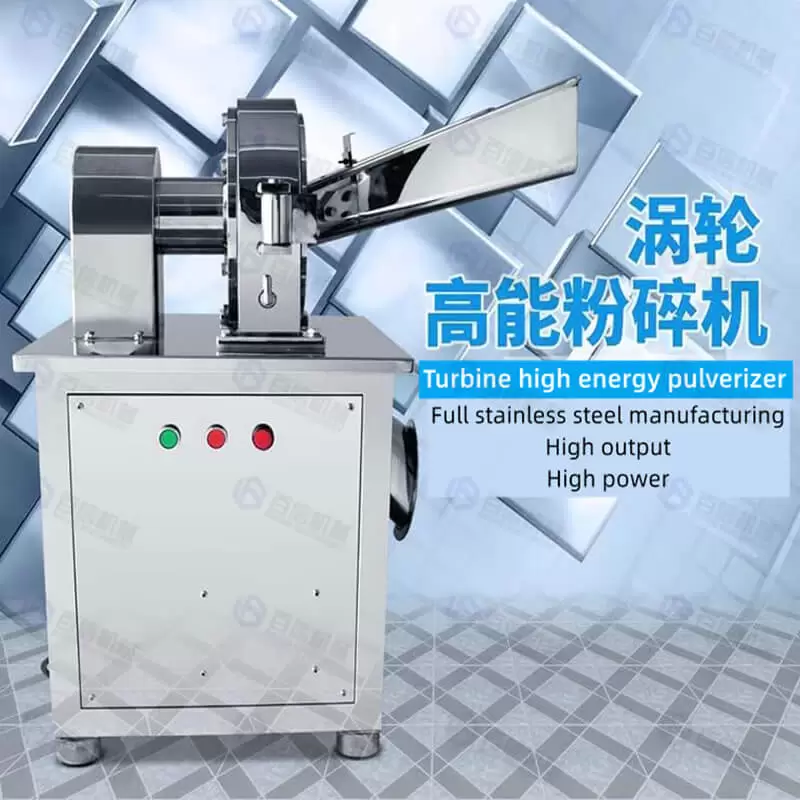

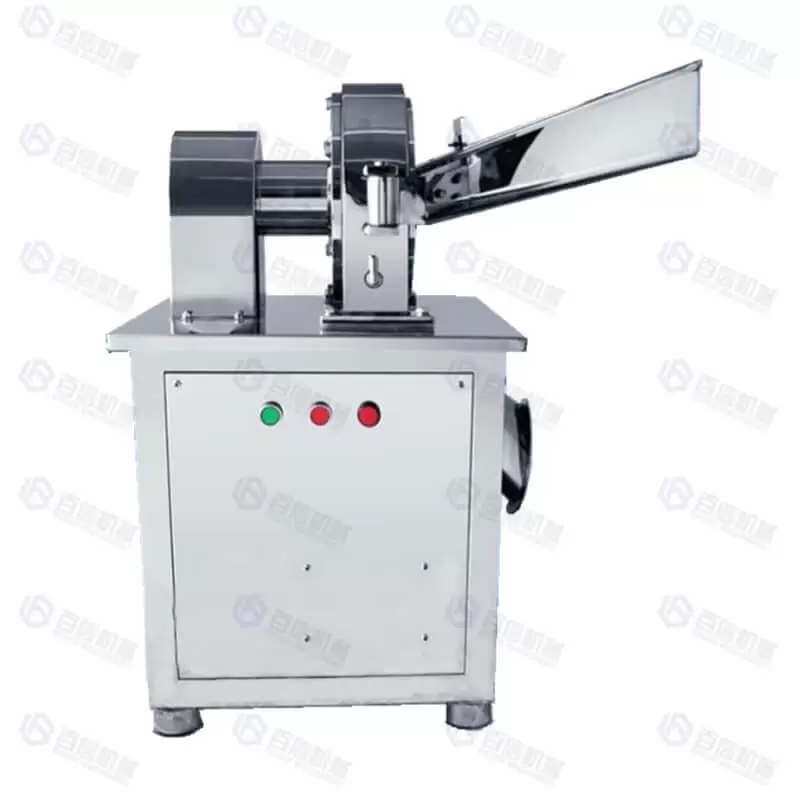

High-energy Grinder

Product Type :
High-energy Grinder
Output :
Power Supply :
380V / 220V (Can be customized)
Power Input :
Applicable Materials :
Ginger, chili, sugar, salt, pepper, wheat, soybean,etc.
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Adjustable fineness/ Easy operation/ Safety and hygiene
Production introduction

High-energy grinder is mainly used in food, pharmaceutical, chemical and other industries. Mainly used for materials containing roots, branches and block materials, various grains with low oil content, whole grains and other hard and brittle materials. The fineness is adjusted between 10-120 mesh, with high output and fine particle size , low noise, low energy consumption, simple maintenance, convenient installation and so on.

Working Principle of high-energy grinder:

The high-energy grinder uses the turbine disk to drive the movable blade to impact and shear the material, as well as the impact and friction between the material and the material, and the material and the ring gear to alternately pulverize. The roulette is also added with a fan blade device, which can generate strong wind power during work, play a negative pressure feeding function, and can take away a lot of heat in the cavity, and can replenish the outside air in time, thereby greatly improving production efficiency and yield.

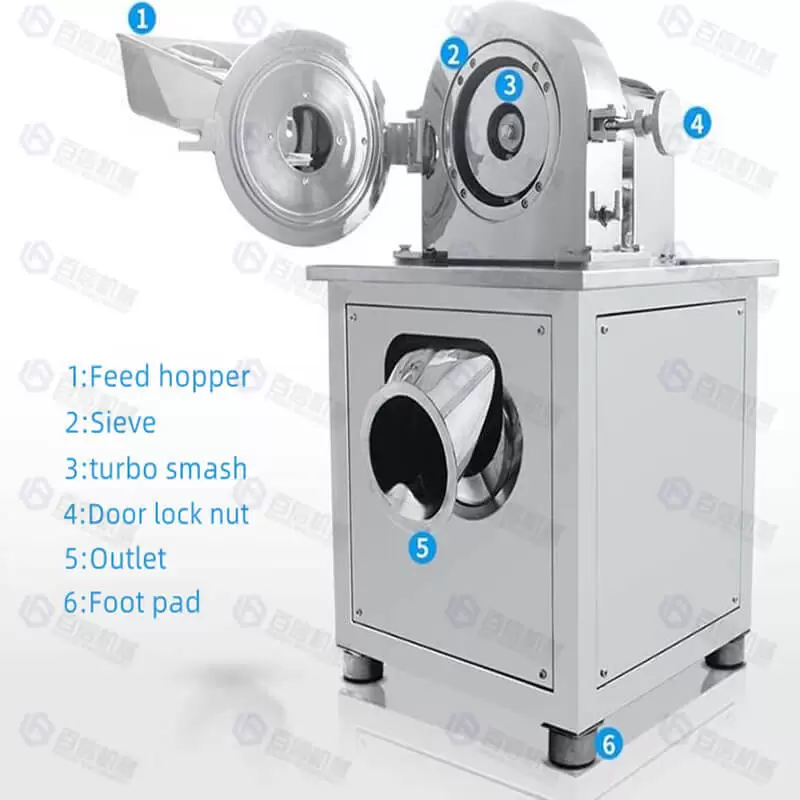

Product components

Features of high-energy grinder:

1.The structure is simple, the crushing chamber is easy to assemble and disassemble, and it is easy to clean.

2.The machine is made of all stainless steel and meets the requirements of GMP.

3.Smooth operation, low noise and small vibration.

4.Simple operation. The fineness of the powder can be controlled by changing the sieve.

Application of the high-energy grinder:

High-energy grinder is mainly suitable for ginger, pepper, sugar, salt, pepper, wheat, soybean, star anise, cinnamon, dried vegetables and other materials containing roots, branches and lumps, various grains with low oil content, whole grains And the crushing of other hard and brittle materials.

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

Technical Parameter
High-energy pulverizer
Model Capacity(kg) Power(kw) Spindle speed Dimension(mm) Fineness(mesh)
BX-20 20-120 3 4660 75*60*126 10-120
BX-24 40-200 5.5 4660 84.4*68*125.9 10-120
BX-28 60-350 7.5 4200 89.3*65*106 10-120
BX-20A 30-120 3+0.75 4660 120*120*165 10-120
BX-24A 40-200 5.5+0.75 4660 130*130*180 10-120
