Large Output Chili Pepper Powder Production Line

Product Type :
Chili Pepper Processing Line
Output :
1000kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
63.19KW (Depends on output)
Applicable Materials :
Chili Pepper Powder, Other Fruits and Vegetables
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Automatic/ Continuous/ Large-Capacity/ Support Customization
Share:
Production introduction

The chili pepper powder processing line has continuous automatic production, fast processing speed, high output, good quality, and a low-temperature drying method maintains the original flavor of chili pepper.
It includes chili pepper washing machine,chili pepper air dryer(optional),chili pepper punch(optional),chili pepper dryer,chili pepper color sorter,chili pepper tail remover,chili pepper grinder,chili pepper powder packaging machine and other equipment. The chili pepper powder processing line can also be used for other spices such as garlic, ginger, onion, etc.
In addition, dry ground chili pepper is easier to store, avoiding economic losses caused by seasonal storage and mildew deterioration. The chili pepper processing line adopts advanced technology, high chili pepper output, and direct sales at factory prices. This is the best choice for the chili pepper business and the most ideal equipment for chili pepper processing at present.

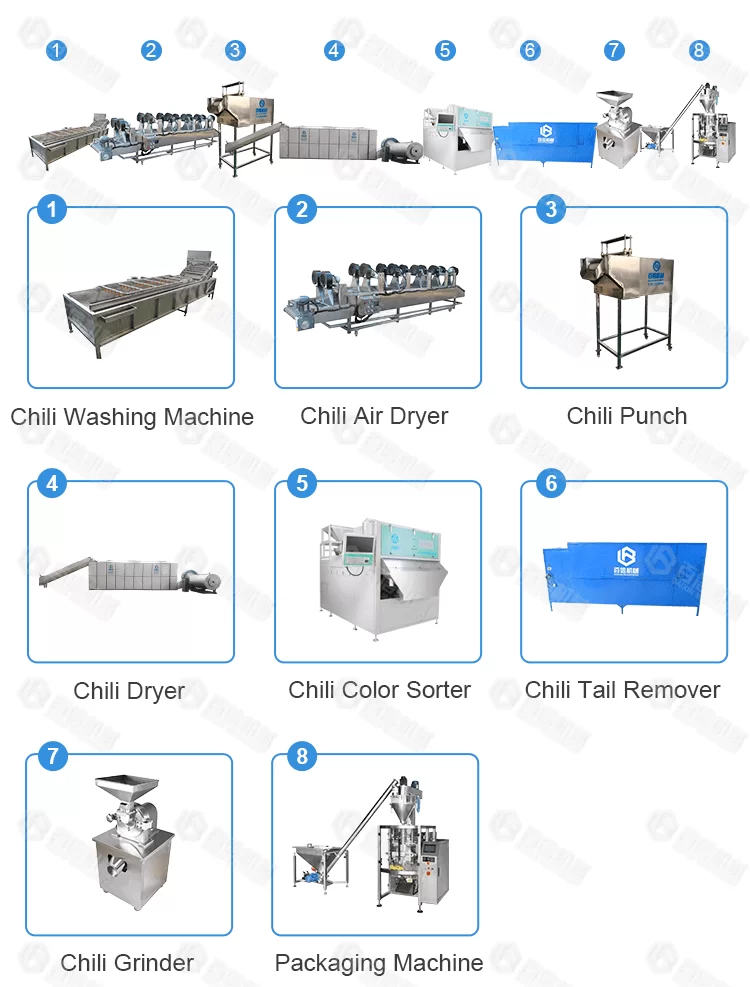

Product components

Chili pepper washing machine: Clean the chili of dust and impurities, and remove debris. The whole is made of stainless steel. The chili is cleaned by the action of water circulation. After cleaning, the chili will go to the next process along with the conveyor system.

Air dryer (Dehydrator): It can effectively remove the surface moisture of chili and shorten the drying time of chili.

Chili pepper punch: Chili drying has its own particularity. During the drying process of chili, in the early stage of drying, the skin of the chili quickly loses moisture, and the epidermis of the chili becomes hard, which will cause the internal moisture to lose very slowly. If the peppers are punched before drying, the moisture inside the peppers will quickly lose, shortening the drying time of the peppers. Chili punching has no effect on the drying quality of chili and is suitable for large chili peppers.

Multi-layer belt chili pepper dryer: The dryer is the key equipment, which determines the effect and quality of chili after processing. Using our mesh belt type chili dryer, with an intelligent control system, can make chili the drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. The use of this chili dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Chili pepper color sorter: Sort the dried peppers, remove damaged, shriveled, mildewed peppers, or remove stalks, leaves, stones and other sundries in the peppers. The machine can accurately sort out high-quality peppers according to the color difference of peppers, with fast sorting speed and high efficiency. The selected peppers are of high quality, and the net selection rate can reach more than 99%.

Chili pepper tail remover: The main function of the chili tail removal machine is to remove the tail of the chili, and the value of the processed chili is doubled. The equipment has a fast processing speed, low chili loss, and is suitable for different varieties of chili.

Chili pepper powder making machine: Grind dried chili to a fineness of 10-120 mesh. The chili grinder is air-cooled or water-cooled and can work continuously for a long time.

Chili pepper powder packaging machine: Generally speaking, the chili powder business requires automatic chili powder packaging equipment. The chili powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Advantages of the chili pepper powder processing line:

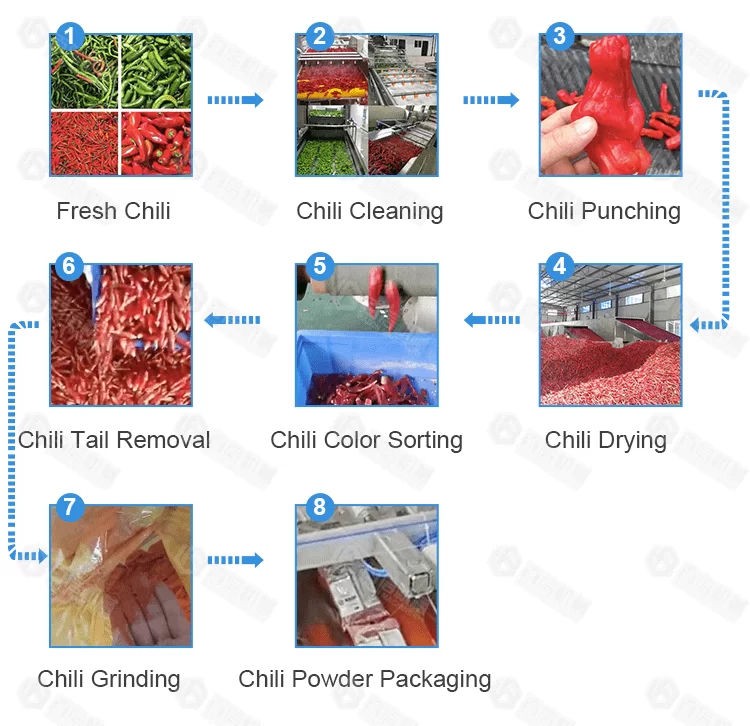

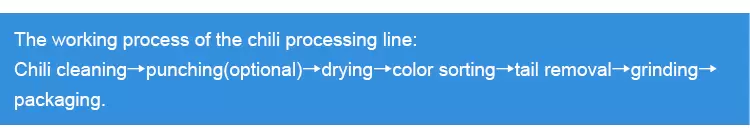

Chili pepper powder processing line flow chart


Technical Parameter
Large Output Chili Pepper Powder Production Line
Number Name Power Size Output
1 Chili Washing Machine 3.37KW 3000*1020*1350mm 1000kg/h
2 Chili Air Dryer 6KW 4000*950*1600mm 1000kg/h
3 Chili Punch 1.5KW 1150*600*750mm 800-1000kg/h
4 Chili Dryer 33.12KW 12000*2000*2500mm 1000kg/h
5 Chili Color Sorter 7.2KW 4464*1820*2577mm 1000-2000kg/h
6 Chili Tail Remover 3KW 4200*800*1200mm 200-300kg/h
7 Chili Grinder 5.5KW 750*600*1260mm 200kg/h
8 Chili Powder Packaging Machine 3.5KW 3000*1500*2600mm 30-60 packs/min
The chili processing line can be equipped according to the user's requirement and the production demands.
