Semi-Automatic Potato Chips Production Line

Product Type :
Potato Chips Production Line
Output :
30kg/h, 50kg/h, 100kg/h, 300kg/h, 500kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
54.3-278.12KW (Depends on output)
Applicable Materials :
Potato chips, Banana chips, French fries
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Food Grade SUS304 Stainless Steel/ Support Customization
Share:
Production introduction

Baixin has 15 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key projects and make different solutions for different demands.

1. We are a professional manufacturer producing french fries making machines, potato chips making machines.

2. Process capacity including input capacity and output capacity and Process flow can be customized according to your need.

3. About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.

4. Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible and suitable for a small-scale business or a company that has just begun to enter the industry.

5. All equipment in the production line is made of 304 stainless steel.

6. Heating method: Electric heating, Gas heating, or Electricity heating and gas heating both in one.

7. The size of French fries and the thickness of potato chips are adjusted.

8. We can design floor plan of complete line you need depending on your area's size.

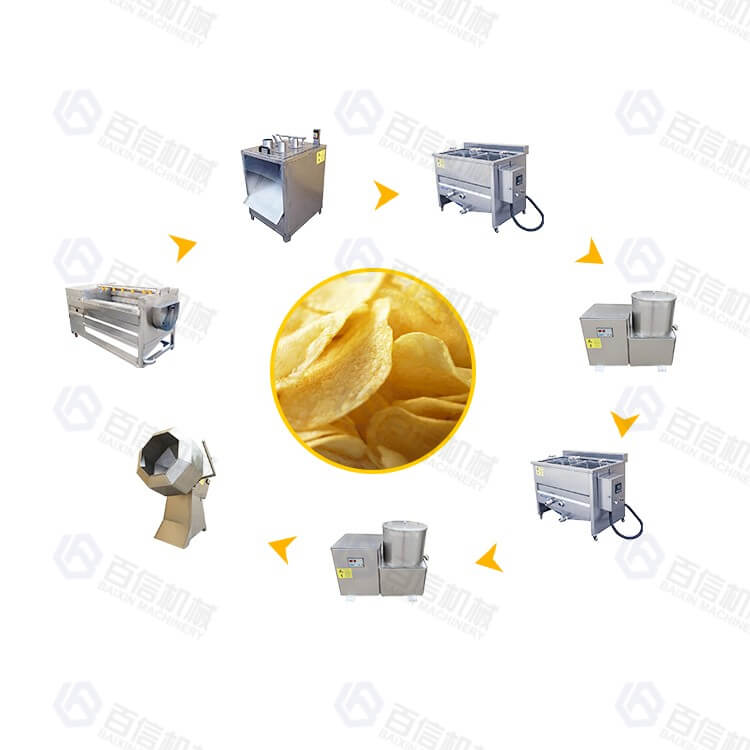

Product components
No. Machine Name Function Advantage
1 Potato Washing and Peeling Machine Thoroughly washing and peeling the potatoes 1.  Washing and peeling capacity can be customized.
2. The length of brush can be customized.
3.We use high quality brusher,even old potatoes that are hard to peel can be peeled well.
4.Spraying system to clean the potatoes.
5.Spiral design to make sure automatic discharging.
6. The discharge speed can be adjusted.
7. The whole machine is made of 304 stainless steel.
2 Potato Slicing Machine Cutting the potatoes into slices,  sizes adjustable from 1-5mm 1.Potato chips thickness 1-5mm can be adjustable.
2.Cutting surface is smooth without damage.
3 Blanching Machine Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the potato slices 1.You can use gas, electricity or diesel as power for this machine depending on your needs.
2.It can effectively protect original vivid color of the potato strips/potato chip.
3.You can add additives during blanching process.
4 Dewatering Machine Remove the surface water The de-water time is adjustable.
5 Frying Machine For quick frying the potato slices around few minutes in 180°oil 1.Automatic lifting system, easy to clean.
2.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life.
3.Electric or gas heating.
6 Deoiling Machine Remove the surface oil The de-oil time is adjustable.
7 Seasoning Machine Spread the seasoning evenly over each potato chip 1.With spice tank, the flow of spice adjustable.
2.You can add additives any you want even liquid such as oil, water etc.
3. Seasoning time can be controlled.
8 Automatic Weighing Packing Machine For packing the finished potato chips It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing.

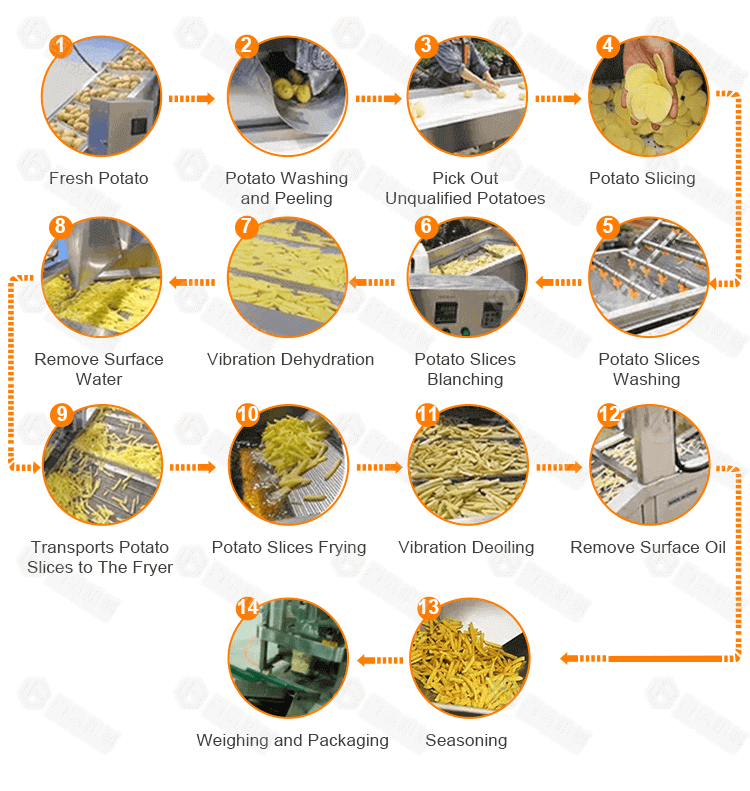

Potato chips processing line flow chart

This set of production line is a new type of potato chips production line developed and developed by our company. This production line is made of high quality 304 Stainless Steel. PLC electrical control,  safe and efficient.The production line adopts advanced technology, the output is high, and the ex-factory price is directly sold. This is the best choice for businesses and the most ideal device.


Technical Parameter
Potato Chips Production Line
No. Machine Name Powder Size
1 Potato Washing and Peeling Machine 4.37kw 3400*900*1400mm
2 Potato Slicing Machine 1.5kw 750*500*1100mm
3 Blanching Machine 40kw 1200*700*950mm
4 Dewater Machine 2.2kw 1600*1350*1500mm
5 Frying Machine 60kw 1900*1600*1700mm
6 Deoil Machine 2.2kw 1600*1350*1500mm
7 Seasoning Machine 1.5kw 3000*1000*1600mm
8 Packaging Machine 3kw 2700*1000*3000mm
Support customization according to customer requirements.
