A Weighing packaging machine is packaging equipment that integrates servo motor control technology, electronic weighing technology, and touch screen control. It has functions such as automatic quantitative, automatic filling, automatic error correction, counting, material cleaning, and parameter memory.

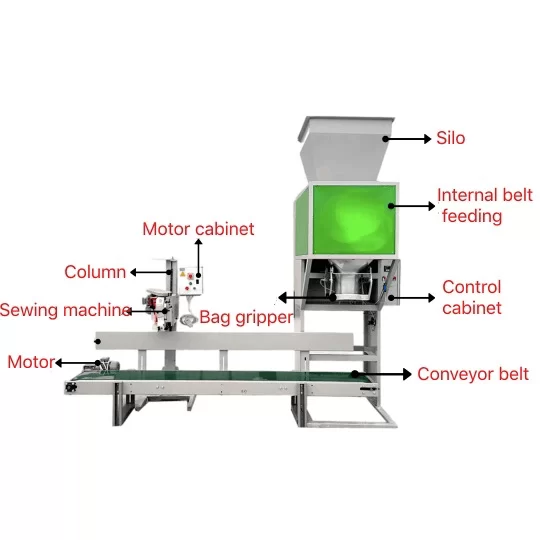

The machine integrates feeding, weighing, bag clamping, conveying, and sewing. Simple operation, fast speed, and high precision. Forced cutting through the belt, high efficiency, stable work, and easy maintenance, can be customized according to customer needs.
Start the weighing and packaging machine and wait for it to enter the running state. The two-speed feeding device of the packaging scale starts to perform fast and slow two-stage feeding. When the feeding amount reaches the set value of the fast feeding, the fast feeding ends. , transfer to slow feeding; when the feeding weight of the material reaches the final set feeding value, the feeding process ends, the feeding motor stops running or the feeding door is closed, and the weighing process is completed;
At this time, the packaging bag is set on the automatic bag holder. Through program control, the discharge door of the weighing hopper is automatically opened, and the material flows into the packaging bag. After completion, the bag clamping device is automatically released, and the packaging bag automatically falls to the conveyor. , and is transported to the automatic heat sealing or automatic sewing station. After manually putting on another bag, the two-speed feeding, automatic weighing, and automatic unloading cycle go back and forth.
Special-shaped block diameter not more than 50 mm, refractory materials, glass slag, powder materials with moisture controlled within 40%, micro-particles, sand and gravel, crops, and spices. Suitable for feed, flour, fertilizer, additive, chemical, paint, and other industries.
|Weighing Packaging Machine|
|Packaging speed||300-600 bags/hour|
|Power||0.9KW（Depends on material and output）|
|Weight||160KG（Depends on material and output）|
|Size||1000*650*1900mm（Depends on material and output）|
|Packaging bag material||Woven bags, sacks, paper bags, cloth bags and plastic bags, etc.|
