Automatic Ginger Production Line

Product Type :
Ginger Processing Line
Output :
500-800kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
47.68KW (Depends on output)
Applicable Materials :
Ginger, Other Fruits and Vegetables
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Automatic/ Continuous/ Large-Capacity/ Support Customization
Share:
Production introduction

The ginger processing line uses ginger as raw material and processes ginger into ginger powder through processing techniques such as cleaning, peeling, slicing, drying, and grinding. Meet the culinary needs of different households, restaurants, and food processing plants.

Processing ginger into ginger powder can increase the added value of ginger in the ginger planting industry, and reduce the ginger loss and storage and transportation costs caused by ginger price fluctuations. This is the best choice for the ginger business!

Product components

Ginger cleaning machine: It is used to clean the dirt, dust, and other impurities attached to the surface of ginger root. The ginger is rolled, washed, and transported under the action of high-pressure water flow and powerful air bubbles, and then sent to the next process.

Ginger peeler: for cleaning and removing the epidermis. The specially designed screw feeding structure is adopted to realize fully automatic work.

Ginger slicer: The thickness of ginger slices is uniform, and the slice thickness can be adjusted as needed.

Ginger air dryer: effectively remove the moisture on the surface of ginger slices after cleaning, greatly shorten the drying cycle, suitable for assembly line operation.

Ginger slice dryer: adopts multi-layer moving stainless steel mesh belt, automatic loading, and unloading, saving a lot of labor costs. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Ginger powder making machine: Grind dried ginger slices to a fineness of 10-120 mesh. The ginger grinder is air-cooled or water-cooled and can work continuously for a long time.

Ginger powder packaging machine: Generally speaking, the ginger powder business requires automatic ginger powder packaging equipment. The ginger powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Advantages of the ginger processing line:

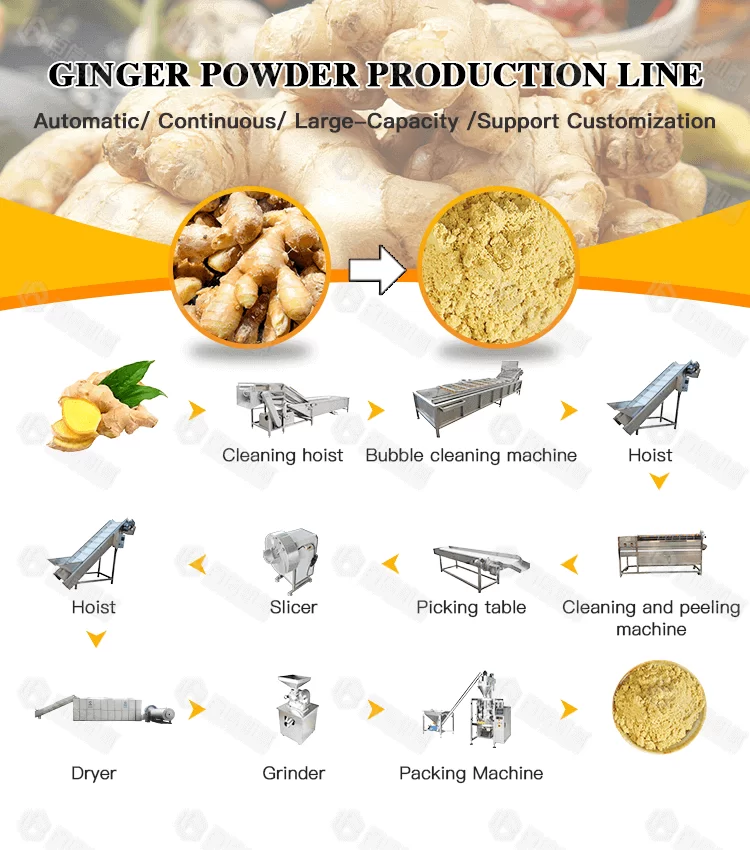

Ginger processing line flow chart




Technical Parameter
Automatic Ginger Processing Line
Number Name Power Size Output
1 Cleaning hoist 0.37KW 3200*1050*2500mm 1000kg/h
2 Bubble cleaning machine 3.37KW 3000*1020*1350mm 1000kg/h
3 Hoist 0.55KW 1500*800*1600mm 1000kg/h
4 Cleaning and peeling machine 2.75KW 3050*700*1600mm 1000kg/h
5 Picking table 0.37KW 3000*740*1100mm 1000kg/h
6 Slicer 1.1KW  690*560*880mm 1000kg/h
7 Hoist 0.55KW 1500*800*1600mm 1000kg/h
8 Dryer 20.12KW 9000*2000*2500mm 800-1000kg/h
9 Grinder 15KW 1200*1000*2000mm 500kg/h
10 Packing Machine 3.5KW 3000*1500*2600mm 30-60 packs/min
The ginger processing line can be equipped according to the user's requirement and the production demands.
