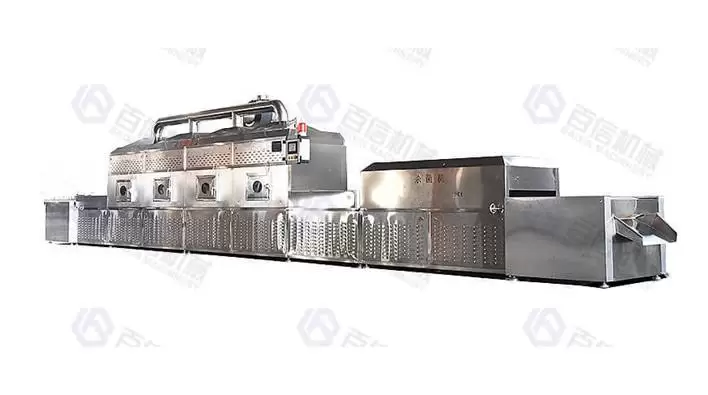

Microwave Sterilization Machine

Product Type :
Microwave Drying Equipment
Output :
100-2000kg/h
Temperature :
0-400℃
Power Supply :
380V(Can be customized)
Power Input :
6KW-200KW
Heat Source :
Electricity
Customization :
Can be customized
Core Advantages :
Fast heating speed and uniform/ Energy saving/ Sterilizing
Share:
Production introduction

Microwaves are electromagnetic waves at a frequency of 300 MHz to 300 GHz. The material in the heating medium in the molecules of water is a polar molecule. It is the rapidly changing under high-frequency magnetic field, its polarity orientation will be with the change of external electric field changes, resulting in molecular motion and friction between the effect, this field of the microwave field can be transformed into thermal energy within the medium, the temperature of the material increased, heating and puffing a series of physical and chemical processes, to achieve the purpose of microwave heating and drying.

During the equipment is working the microwave generator produces the microwave. The materials enter the heating chamber by conveyor. At this time, moisture and bacteria inside the material evaporate under the action of microwave energy to achieve unfreeze sterilization ripening fixing drying purposes.

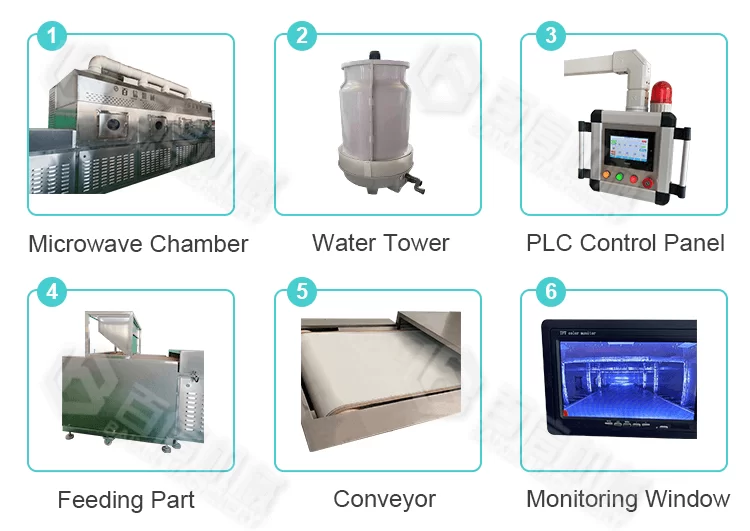

Product components

Advantages of microwave sterilization machine:

1:Fast processing efficiency:
It takes about a few minutes to complete the process from feeding to discharging. The processing efficiency is fast and the effect is good.
2:Uniform drying effect:
The microwave dryer can make all parts of the material have the same effect.
3:Drying and sterilizing simultaneously, tunnel type design, cover small area, continuous production.
4:Clean and sanitary: it will not pollute the material, nor change the color, fragrance, and nutritional content of the material.

Application of microwave sterilization machine:

Pasta classes:non-fried fast noodles, fine dried noodles, stewed noodles.
Dehydrated Vegetables:all kinds of vegetables.
Meat :Beef ,pork ,chicken ,fish ,duck.
Grain and nuts:Filbert ,Chinese chestnut ,peanut ,nut,almond ,pine nut ,pistachio nut ,melon seeds,grain.
Worm: black soldier fly larva.

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

Sterilization processing steps

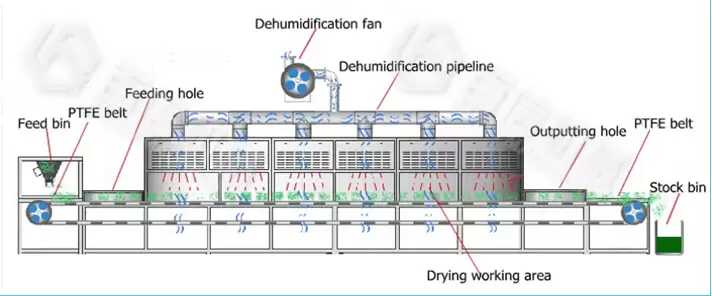

Place the materials on the conveyor belt of the microwave dryer. The materials are dispersed on the conveyor belt through a homogenizing device on the conveyor belt. During the operation of the equipment, the microwave generator generates microwaves. The materials enter the heating chamber through the conveyor belt. At this time, the water and bacteria in the materials evaporate under the action of microwave energy to achieve the purpose of sterilization and drying. The drying time is 5-10 minutes. The dried materials are discharged from the discharge port.


Technical Parameter
Model Size(mm) Power Dewater Cabinet Feeding mesh width Temperature Control
BX-10 6300*665*1800 10KW 10kg/h 2 500mm 0~400℃ PLC
BX-15 6300*950*1800 15KW 15kg/h 2 750mm 0~400℃ PLC
BX-20 8500*1200*1800 20KW 20kg/h 4 500mm 0~400℃ PLC
BX-30 8500*1500*1800 30KW 30kg/h 4 750mm 0~400℃ PLC
BX-40 10500*1500*1800 40KW 40kg/h 6 750mm 0~400℃ PLC
BX-50 10500*2000*1800 50KW 50kg/h 6 1200mm 0~400℃ PLC
BX-60 10500*2000*1800 60KW 60kg/h 6 1200mm 0~400℃ PLC
BX-70 12500*2000*1800 70KW 70kg/h 8 1200mm 0~400℃ PLC
BX-80 12500*2000*1800 80KW 80kg/h 8 1200mm 0~400℃ PLC
BX-90 14500*2000*1800 90KW 90kg/h 10 1200mm 0~400℃ PLC
BX-100 14500*2000*1800 100KW 100kg/h 10 1200mm 0~400℃ PLC
BX-120 16500*2000*1800 120KW 120kg/h 12 1200mm 0~400℃ PLC
BX-150 20000*2000*1800 150KW 150kg/h 16 1200mm 0~400℃ PLC
BX-160 20000*2000*1800 160KW 160kg/h 16 1200mm 0~400℃ PLC
BX-180 22000*2000*1800 180KW 180kg/h 18 1200mm 0~400℃ PLC
BX-200 23400*2000*1800 200KW 200kg/h 20 1200mm 0~400℃ PLC
The drying machine can be equipped according to the user's requirement and the production demands.
