Semi-automatic Plantain Banana Production Line

Product Type :
Plantain Banana Processing Line
Output :
300-500kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
36.34KW (Depends on output)
Applicable Materials :
Plantain, Other Fruits and Vegetables
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Flexible Configuration/ Easy Operation/ Support Customization
Share:
Production introduction

The plantain banana powder processing line is flexible configuration easy operation and good quality. Banana powder production line equipment can be customized according to customer needs. The picked fresh bananas are processed into banana powder after blanching, cleaning, peeling, slicing, soaking, drying, and grinding. Banana powder processing equipment includes banana peeling machine, banana slicer, banana blanching and soaking machine, banana dryer, banana chip grinding machine, banana powder packaging machine, and other equipment, which can be used for deep processing of banana chips and banana powder. The line equipment is also suitable for processing various fruits and vegetables, such as ginger, garlic, onion, pepper, mango, apricot, apple, etc. The production line adopts advanced technology, the output is high, and the ex-factory price is directly sold. This is the best choice for businesses and the most ideal device.

Product components

Plantain banana peeler: The first step in a banana processing line is to peel the bananas. The banana peeling machine adopts manual feeding and automatic peeling process, which can quickly remove the banana peel, and the peeling is clean and not damaged. Perfectly peels bananas of any camber, any size, any shape. The peeling effect is good and the speed is fast. It is the latest technology product exclusively invented in the world, and it is also a must-selected product for the global banana processing plants.

Plantain banana slicer: The banana slicer is used to cut bananas into thin slices of uniform thickness, and the thickness of the slices can be adjusted as needed. The slicer has a good effect, the banana cutting surface is smooth and even, not broken. Made of food-grade stainless steel, healthy and safe. Simple operation, high efficiency, and easy cleaning.

Plantain banana blanching and soaking machine: reduce the outflow of banana juice, prevent the oxidation of bananas, protect the color of bananas, and soak the bananas at the same time, so that the produced bananas are tastier. The water temperature of the machine is controllable, and the material used is stainless steel, which is safe and hygienic, and easy to clean. The water can be circulated, the conveying speed can be adjusted, and the operation is simple.

Multi-layer belt plantain banana dryer: The dryer is the key equipment, which determines the effect and quality of the banana after processing. Using our mesh belt type banana dryer, with an intelligent control system, can make banana the drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. This banana dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Plantain banana powder making machine: Grind the dried banana chip to a fineness of 10-120 mesh, and obtain the particle size of banana powder by selecting screens with different apertures. the banana grinder has simple structure, stable operation, low noise, and good crushing effect. Air-cooled or water-cooled, Prevents damage to the ingredients of banana powder during milling.it can work continuously for a long time.

Plantain banana powder packing machine: The banana powder packaging machine adopts PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted. It can automatically complete the tasks of banana powder measurement and filling, with high precision, small error, intelligent bag delivery, adjustment of bag width, and filling of banana powder. It is suitable for all kinds of fine powders with good fluidity.

Advantages of plantain banana processing line:

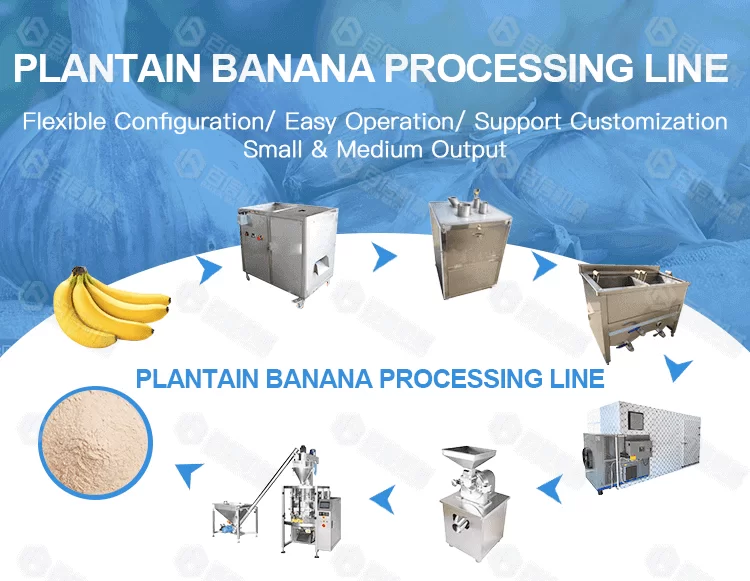

Plantain banana processing line flow chart




Technical Parameter
Semi-automatic Plantain Banana Processing Line
Number Name Power Size Output
1 Plantain Banana Peeler 0.74KW 2100*1060*1040mm 300-500kg/h
2 Plantain Banana Slicer 0.75KW 540*820*1060mm 300-500kg/h
3 Plantain Banana Blanching Soaking Machine 24KW 1200*700*950mm 300-500kg/h
4 Plantain Banana Dryer 3.75KW 3500*2200*2200mm 300-500kg/h
5 Plantain Banana Grinder 5.5KW 750*600*1260mm 30-150kg/h
6 Plantain Banana Powder Packaging Machine 1.6KW 700*750*1650mm 30-60 packs/min
The plantain banana processing line can be equipped according to the user's requirement and the production demands.
