Small Output Moringa Leaf Powder Production Line

Product Type :
Moringa Leaf Powder Processing Line
Output :
200-300kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
13.07KW (Depends on output)
Applicable Materials :
Moringa Leaf,Fruits And Vegetables
Warranty :
2 Years
Customization :
Can be customized
Core Advantages :
Flexible Configuration/ Easy Operation/ Support Customization
Share:
Production introduction

The Moringa leaf powder processing line has fast processing speed and good quality. The picked Moringa leaves are processed into Moringa powder after being cleaned, air-dried, cut into sections, dried, and ground. Moringa leaf powder processing equipment includes moringa leaf washing machine, moringa leaf cutting machine, moringa leaf drying machine, moringa leaf mill, moringa leaf powder packaging machine, and other equipment, which can be used for moringa leaf, moringa leaf powder, and other deep processing. This assembly line equipment is also suitable for processing a variety of fruits and vegetables, such as ginger, garlic, onion, pepper, spices, and so on. The production line adopts advanced technology, the output is high, and the ex-factory price is sold directly. This is the best choice for businesses and the most ideal device.

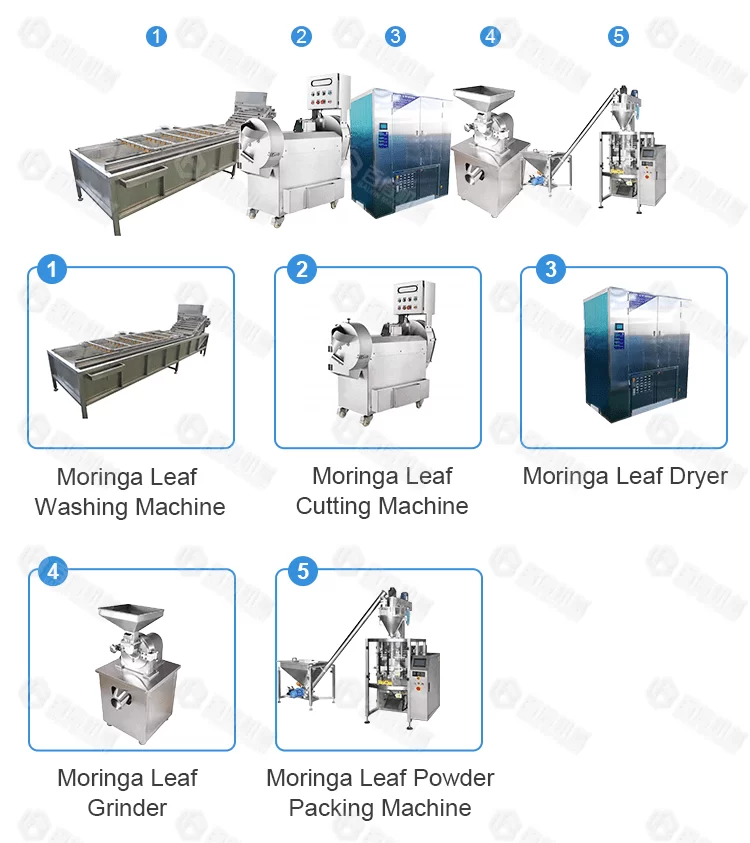

Product components

Moringa leaf washing machine: It is used to clean the dirt, dust and other impurities attached to the surface of Moringa leaves. Moringa leaves are washed and transported under the action of high-pressure water flow and strong air bubbles, and at the same time, appropriate color fixatives and disinfectants can be added to enhance the color of Moringa powder. It is then transported to the next process.

Moringa leaf cutter: Moringa leaves are cut into sections with uniform length, the speed of the conveyor belt is adjusted by the frequency converter, and the length of the cut sections can be adjusted as required. One machine is multi-purpose, high output, easy to replace the cutter head, easy to operate, and easy to clean.

Multi-layer belt moringa leaf dryer: The dryer is the key equipment, which determines the effect and quality of moringa leaf after processing. Using our mesh belt type moringa leaf dryer, with an intelligent control system, can make moringa leaf The drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. This moringa leaf dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Moringa Leaf Powder Making Machine: Grind the dried Moringa leaves to a fineness of 10-120 mesh, and obtain the particle size of Moringa powder by selecting screens with different apertures. Moringa leaf grinder has a simple structure, stable operation, low noise, and good crushing effect. Air-cooled or water-cooled, it can work continuously for a long time.

Moringa Leaf Powder Packing Machine: The moringa leaf powder packaging machine adopts a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted. It can automatically complete the tasks of moringa powder measurement and filling, with high precision, small error, intelligent bag delivery, adjustment of bag width, and filling of moringa powder. It is suitable for all kinds of fine powders with good fluidity.

Advantages of moringa leaf powder processing line:

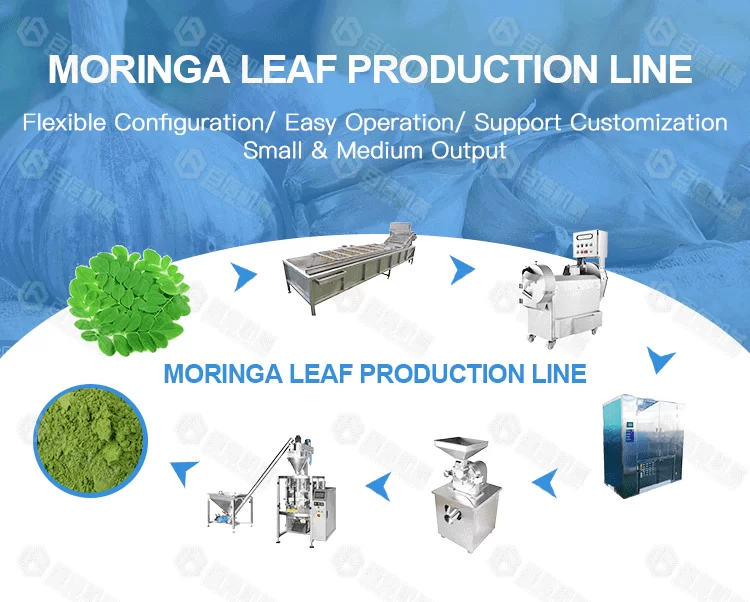

Moringa leaf powder processing line flow chart




Technical Parameter
Small Output Moringa Leaf Powder Processing Line
Number Name Power Size Output
1 Moringa Leaf Washing Machine 1.87KW 2500*1300*1400mm 200-500kg/h
2 Moringa Leaf Cutter 1.1KW 1180*550*1020mm 500kg/h
3 Moringa Leaf Dryer 3KW 2100*930*2100mm 200-300kg/h
4 Moringa Leaf Grinder 5.5KW 750*600*1260mm 30-150kg/h
5 Moringa Leaf Powder Packaging Machine 1.6KW 700*750*1650mm 30-60 packs/min
The processing line can be equipped according to the user's requirement and the production demands.
