French Fries Making Machine

French fries making machine is a complete equipment system used to automatically process fresh potatoes into frozen or seasoned French fries. Through automated control technology, French fries making machines can achieve continuous production, effectively reduce manual intervention, increase production capacity, and at the same time ensure consistent fries size and taste.

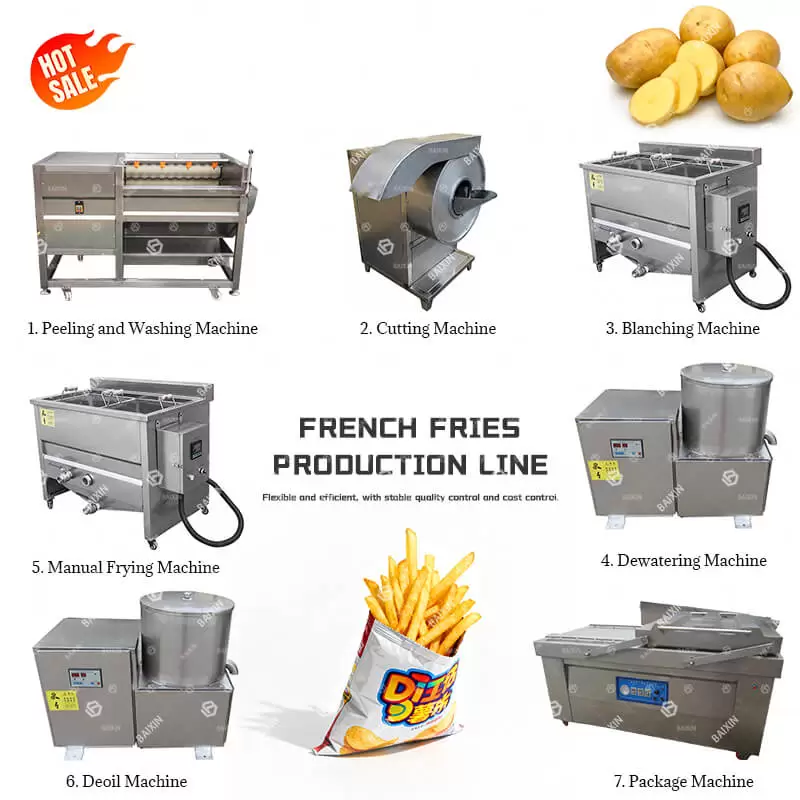

The fully automated French fries making machine is shown in the picture below:

As a professional manufacturer of French fries making machines, Baixin Machinery provides customers with a one-stop service from equipment planning and process design to installation and commissioning. The complete processing flow of the French fries making machine will be detailed below.

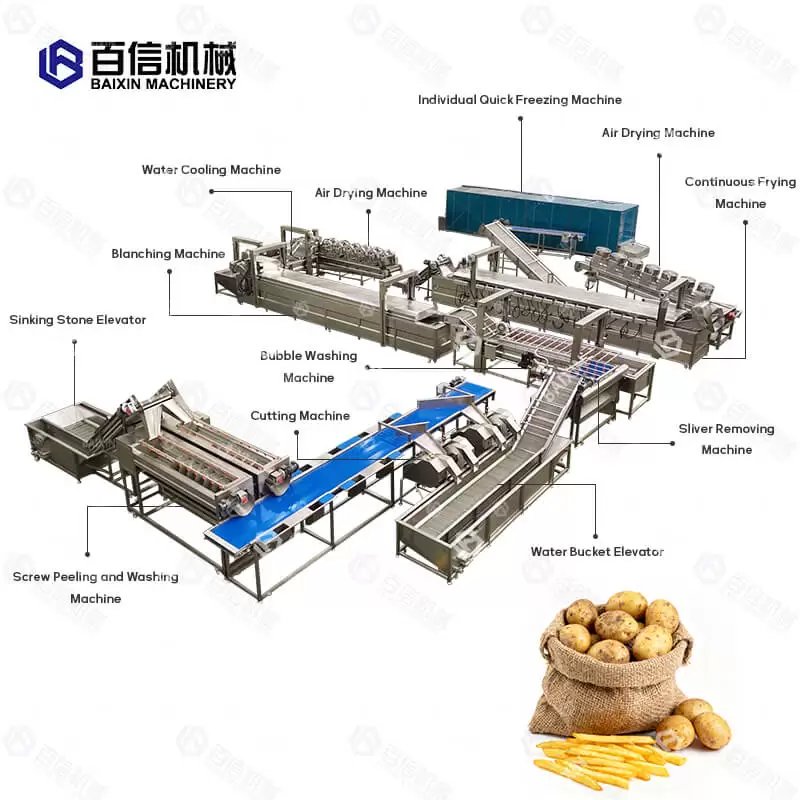

A standard frozen French fries making machine production process typically includes:

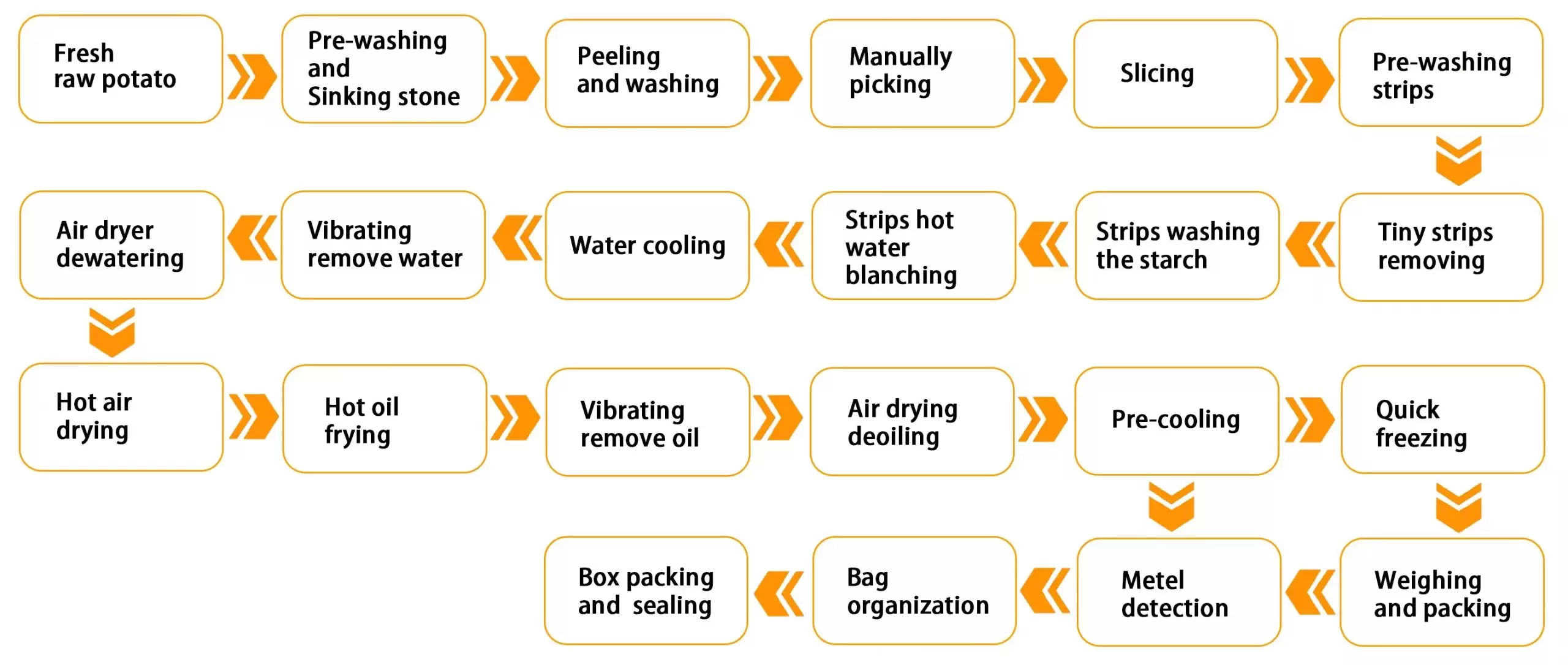

Fresh raw potato—Pre-washing and sinking stone—Peeling and washing—Manually picking —Slicing—Pre-washing strips—Tiny strips removing—Strips washing the starch—Strips hot water blanching—Water cooling—Vibrating remove water—Air dryer dewatering—Hot air drying—Hot oil frying—Vibrating remove oil—Air drying deoiling—Pre-cooling—Quick freezing—Weighing and packing—Metal detection—Bag organization—Box packing and sealing

Potato Raw Material and Finished French Fries Standards

When using French fries making machines, the quality of the raw potatoes directly affects the quality of the final product. Therefore, the raw material standards and finished product specifications must be clearly defined before the equipment is put into operation.

Potato raw material standards:

Shape: The tuber is a regular oblong shape, which makes it easy to cut into strips.

Appearance: The skin is smooth and the buds are shallow, which can reduce the loss rate of peeling.

Color: The skin and flesh of the potato are white or light-colored.

Specifications: Diameter 60–80mm is preferred.

A starch content of 15%–17% and a reducing sugar content of less than 0.2% help to achieve an ideal color after frying.

Finished Product Standards

Appearance: The strips are intact, with a uniform light golden yellow color and no obvious frost on the surface.

Texture: After being fried twice, it is crispy on the outside and soft on the inside, with a delicate internal texture.

Moisture content: ≤65%.

Starch content: 14%–17%.

Reducing sugar content: ≤0.25%.

Guide to Selecting French Fries Making Machine

After mastering the complete production process of French fries, choosing the right French fry manufacturing machine is crucial for achieving high efficiency and stable processing . Different specifications of French fries making machines have their own characteristics in terms of capacity, automation level, and processing effect. The following explains the common types to help companies choose according to their actual needs.

1.Small-scale Processing Capacity (50 kg/h - 100 kg/h)

Features and advantages: The small scale french fries processing equipment has a small footprint, low investment cost, simple operation process, short employee training cycle, and is suitable for start-ups or small-scale investors. The construction cycle is fast and the return cycle is relatively short.

Construction requirements: Low requirements for factory buildings, only basic water and electricity are needed; investment of approximately US$20,000–50,000; water consumption of 500–800L per shift; electricity consumption of 20–180kW; 3–5 operators.

2.Medium Processing Capacity (200 kg/h - 400 kg/h)

Features and advantages: High degree of automation, continuous and stable production process, achieving a balance between efficiency and cost, suitable for enterprises that need to expand production capacity.

Construction requirements: The factory area is approximately 300 square meters, and it needs to have a flat site, stable power supply, and sewage discharge capacity; the investment is approximately US$70,000 to US$200,000; the water consumption per shift is 1,000 to 1,500 liters; the power consumption is 50 to 350 kW; and there are 2 to 4 operators.

3.Large-scale Processing Capacity (500-1000 kg/h)

Features and advantages: Enables full-process automation, suitable for large-scale food processing plants; significantly reduces labor costs; equipped with an oil circulation system to reduce losses; stable product quality, meeting export standards.

Construction requirements: The site area is 500–750 square meters; the factory needs a stable power supply, sufficient water supply, and a complete drainage system; the investment is approximately US$280,000–450,000; the water consumption per shift is 2,500–3,500 liters; the power consumption is 200–1,000 kW; and the number of operators is 4–6.

The Strength of French Fries Making Machine Manufacturers

Besides the frozen french fries making machine itself, installation, transportation, and after-sales service directly impact the stable operation of the production line.

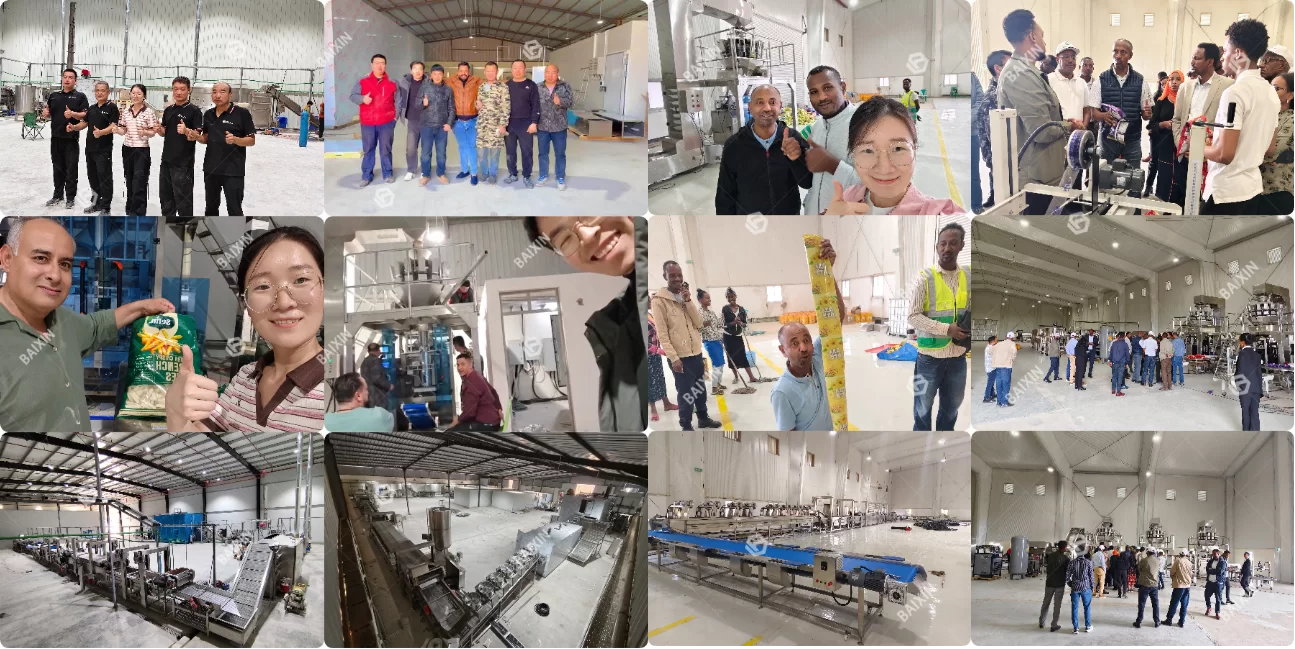

Installation Service

For customers requiring on-site installation and commissioning, Baixin Machinery can dispatch a professional engineering team to install and test the equipment, and provide operation training and maintenance guidance to ensure the smooth commissioning of the production line.

Transportation Support

With years of export experience, we have a mature and standardized logistics process to ensure that equipment is delivered to customers' sites safely and efficiently.

After-sales Guarantee

The entire production line comes with a one-year warranty.We offer 24-hour online support in case of any problems during equipment operation.
Damage caused by equipment or process issues will be repaired or replaced within 7 days.

With the continued growth of the global fast food industry market, frozen French fries production lines have become an important investment area in the food processing sector.

Baixin Machinery not only provides standardized French fries making machines of various sizes , but also offers customized solutions based on customers' budgets, production needs, and finished product specifications, helping them establish efficient, stable, and sustainable French fry production projects. If you are interested in French fries making machines or the food processing industry, please feel free to contact us. We will arrange a professional project manager to design a customized solution for you free of charge.
