Continuous French Fries Frying Machine

Product Type :
Frying machine
Output :
250-800kg/h
Power Supply :
380V / 50Hz
Power Input :
24KW-220KW
Applicable Materials :
French fries, potato chips, banana chips, vegetable, meat pie, chicken nuggets, pork skins, spring rolls, peanuts and many other snacks.
Application Place :
Food processing factory ,restaurant, supermarket , school,etc
Customization :
Can be customized
Core Advantages :
Suitable for different foods/Frying time and temperature adjustable/ Can be customized/ Gas/LPG/diesel/electricity heating
Share:
Production introduction

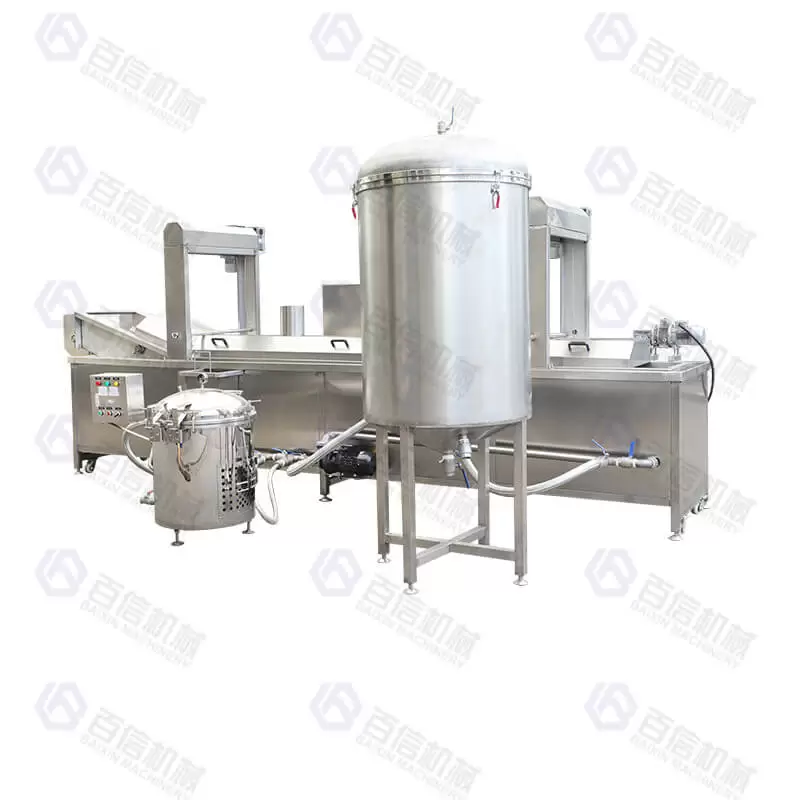

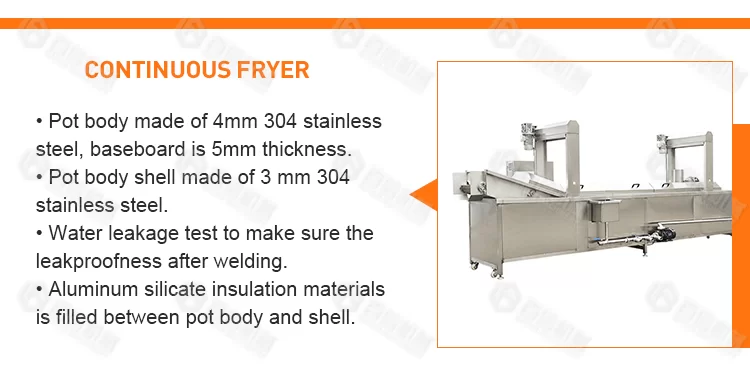

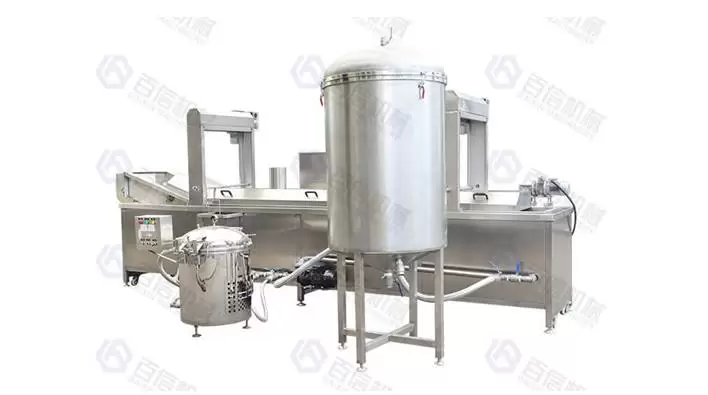

This automatic continuous french fries fryer machine is widely used in restaurant and all food industrial, also an indispensable machine in kinds of snack processing line. It consists of automatic belt conveying system, automatic lifting system, oil adding system, oil filtering system and automatic temperature control system.

1 Frying product Snacks, nuggets burger, fish, peanuts and so on
2 Heating method Electricity/ Gas/LPG/ Diesel/ Wood
3 Rated power Different based on model and products
4 Frying temperature 0-180℃
5 Frying temperature range 0-300℃
6 Temperature precision ±1℃
7 Frying time 1-5mintues adjustable
8 Frying time control range frequency adjustable
9 Mesh belt width 300mm/400mm/600mm/800mm/1000mm/1200mm

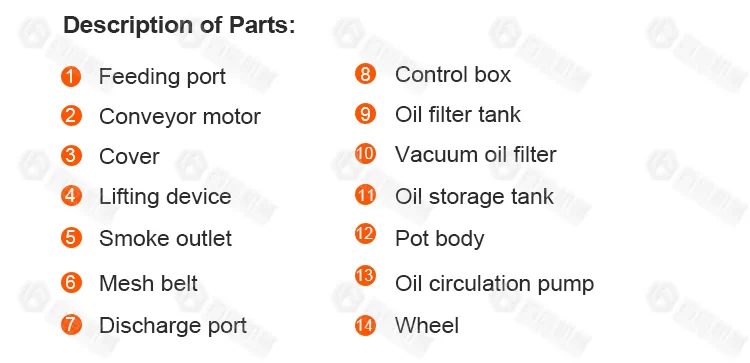

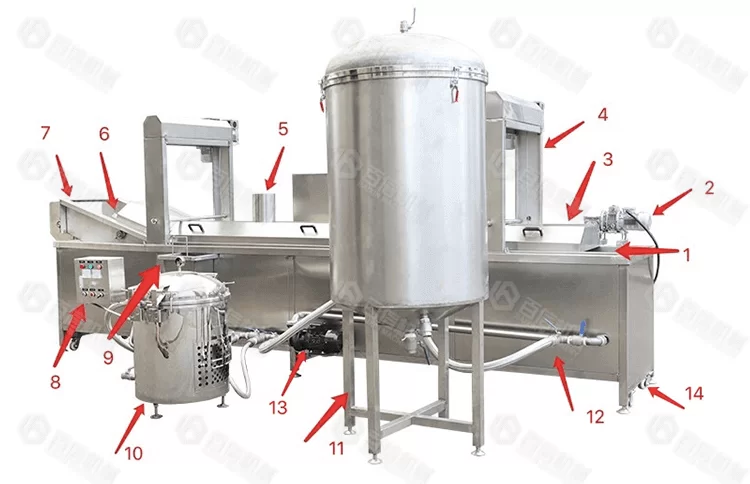

Product components

Features of the continuous french fries frying machine:

1 Conveyor belt speed is adjustable for different frying time according to different products.
2 Electricity, gas or diesel, and also electromagnetism as power source. Gas or diesel model uses the most advanced and reliable Italy imported Riello brand burner with the advantage of fuel economy, low noise, prevent heating loss, high efficiency.

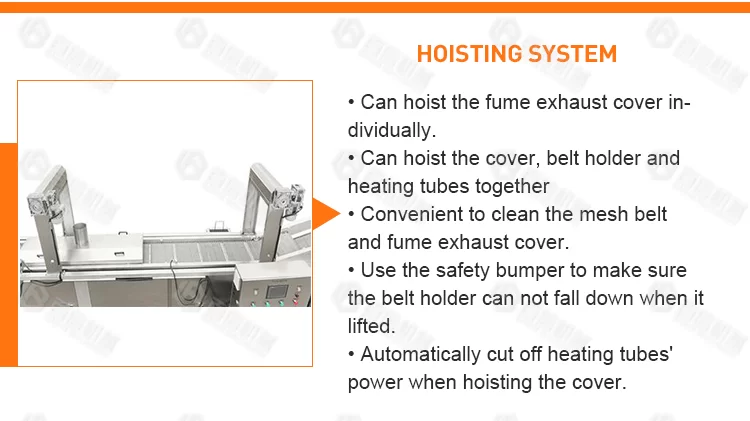

3 Automatic lifting system for easy cleaning the machine and save human power.

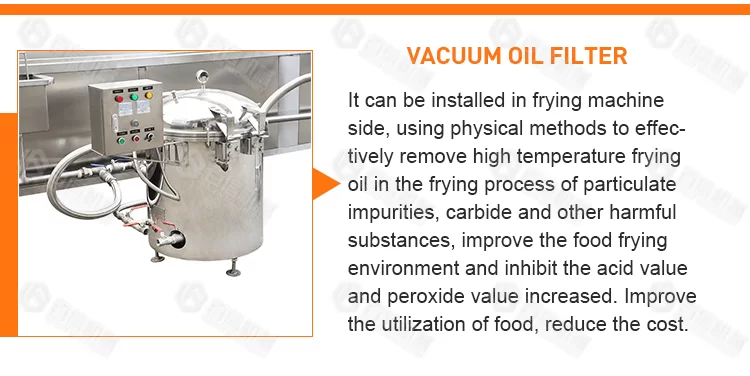

4 Oil circulation system to continuously filter oil residue and extend the service life of cooking.
5 Oil level alarm and automatic oil temperature control (0-300°C).

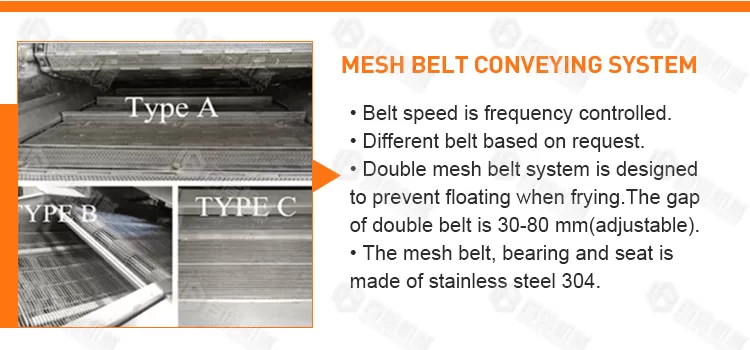

6 Double belt design to prevent floating, ensure complete and perfect frying effect.
7 Scrapers fixed on the belt to make the products come out easily.
8 Fire-extinguishing system can be added according to your demand.

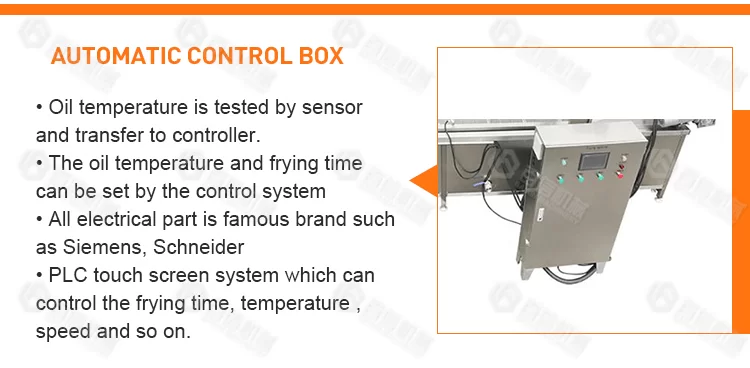

9 PLC touch screen control panel.



Technical parameters
Model Dimension Weight Power Yield(kg)
(electric heating)
BX-2500 2500*800*1300mm 500kg 24kw 250
BX-3000 3000*1200*2200mm 800kg 80kw 300
BX-4000 4000*1200*2200mm 1000kg 120kw 400
BX-5000 5000*1200*2200mm 1200kg 180kw 500
BX-6000 6000*1200*2200mm 1500kg 200kw 600
BX-8000 8000*1200*2200mm 2000kg 220kw 800

Application

This continuous french fries frying machine is not only suitable for french fries, but also for various other fried foods such as potato chips, meat patties, chicken nuggets, banana chips, spring rolls, peanuts and many other snacks. Widely used in large-capacity food industry.

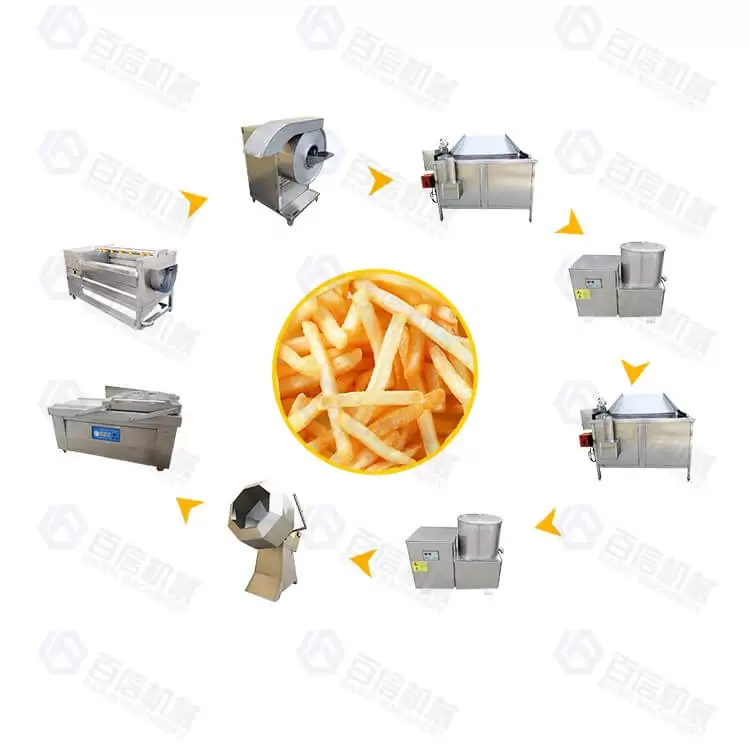

This continuous french fries frying machine always works together with other machines like deoiling machine to combine one whole production line.
