Konjac Production Line

Product Type :
Konjac Processing Line
Output :
1000kg/h
Power Supply :
380V / 50Hz (Can be customized)
Power Input :
56.87KW (Depends on output)
Applicable Materials :
Konjac, Other Fruits And Vegetables
Warranty :
1 Years
Customization :
Can be customized
Core Advantages :
Automatic/ Continuous/ Large-Capacity /Support Customization
Share:
Production introduction

The konjac processing line has continuous automatic production, fast processing speed, high output, and good quality. Including konjac washing and peeling machine, konjac slicer, konjac dryer, konjac flour mill, konjac packaging machine, and other equipment, which can be used for deep processing of konjac dehydrated chips, konjac flour, etc. The production line adopts advanced technology, and the output of konjac is high. Price direct. This is the best choice for konjac processing enterprises, and it is also the most ideal equipment for konjac processing at present.

Product components

A complete large-scale konjac processing plant mainly includes: Konjac washing and peeling machine, konjac slicer, konjac chip dryer, konjac grinding machine, packaging machine, etc., each equipment interacts. Connected by a hoist.

Konjac cleaning and peeling machine:The konjac is placed in the machine, and the brush sweeps and turns the ingredients for cleaning and removing the skin. Then, it enters the spray water section to wash away the dirt that has been brushed on the raw materials until it is washed. The specially designed screw feeding structure is used to realize fully automatic operation.

Konjac slicing machine: Cut the konjac into even slices. The thickness of konjac slices is uniform, and the slice thickness can be adjusted as needed. which has a good effect on the later drying process. This uniform konjac slice can keep the time and effect of the drying process under the same conditions, so the overall drying effect will also be very high, which meets the processing standards of large-scale enterprises in the drying of konjac slices.

Multi-layer belt konjac dryer:The dryer is the key equipment, which determines the effect and quality of konjac after processing. Using our mesh belt type konjac dryer, with an intelligent control system, can make konjac drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. The use of this konjac dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Konjac powder making machine: Grind dried konjac slices to a fineness of 10-120 mesh. The konjac grinder is air-cooled or water-cooled and can work continuously for a long time.

Konjac powder packaging machine:Generally speaking, konjac powder business requires automatic konjac powder packaging equipment. The konjac powder packaging machine has a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Advantages of the konjac processing line

1: Can be customized.

Configure different production lines according to customer output requirements.

The konjac production line is fully automatic and semi-automatic, and customers can choose according to their own needs.

2: Easy to operate.

The konjac production line is easy to install and can be used after connecting to the power supply. It is reliable to use and easy to disassemble.

3: Konjac is of high quality.

The dryer adopts medium and low temperature drying. After drying, the original color and nutrients of konjac can be completely retained. The equipment is made of stainless steel, in line with food machinery standards.

4:Flexible heat source selection of dryer: Coal, wood chips, natural gas, diesel, propane, electricity etc.

5: Wide range of applications:

Most of the machines in the line are not only suitable for konjac, but also for other fruits and vegetables.

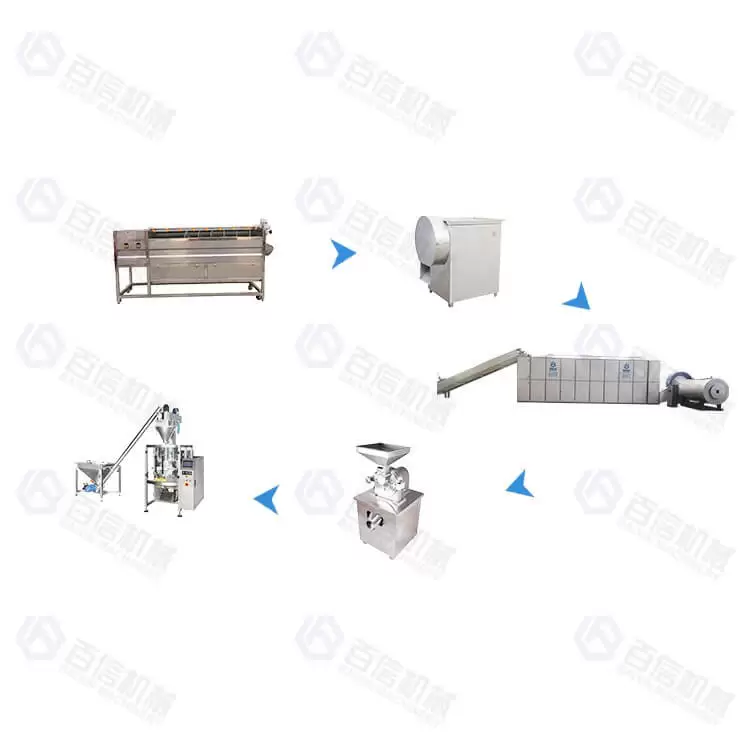

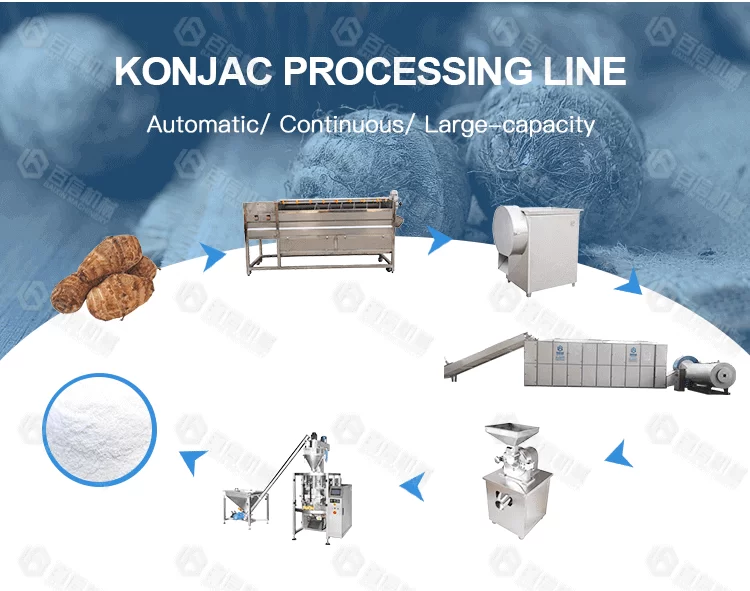

Konjac processing line flow chart




Technical Parameter
Konjac Processing Line
Number Name Power Size Output
1 Konjac Cleaning and Peeling Machine 3.75KW 3200*1100*1350mm 1000kg/h
2 Konjac Slicer 1.5KW 900*850*900mm 1000kg/h
3 Konjac Dryer 33.12KW 12000*2000*2500mm 1000kg/h
4 Konjac Grinder 15KW 1200*1000*2000mm 300kg/h
5 Konjac Powder Packing Machine 3.5KW 3000*1500*2600mm 30-60 packs/min
The konjac processing line can be equipped according to the user's requirement and the production demands.
