500kg/h Quick-Frozen French Fries Production Line Was Successfully Installed in Oman

In September 2025, Henan Baixin Machinery Equipment Co., Ltd. successfully completed the on-site installation and system commissioning of a 500kg/h quick-frozen French fries production line customized for a client in Oman, and it has now entered the stable trial operation phase. Baixin Machinery was responsible for the entire project, from scheme design and equipment manufacturing to overseas installation and delivery, making it a significant successful case study of Baixin Machinery's complete quick-frozen French fries production line in the Middle East.

I. Project Overview

With the continued growth in demand for frozen food in the local market, the client planned to build a stable, efficient, and sustainable frozen fries production line to meet the supply needs of the local and surrounding markets. After extensive research, the client ultimately chose to cooperate with Baixin Machinery , hoping to ensure product quality while also considering production capacity, automation level, and subsequent operating costs.

Based on the client's needs and the factory's actual conditions, Baixin Machinery customized a 500kg/h capacity quick-frozen French fries production solution, with targeted designs in equipment configuration, process flow, and site layout. The following is the core information of this 500kg/h quick-frozen French fries production line.

II.Production Line Configuration and Core Equipment Introduction

This project is a complete 500kg/h quick-frozen French fries production line, covering all key processes from raw material handling to finished product packaging, including: raw material receiving and pretreatment → washing and peeling → cutting into strips → blanching → cooling → dehydration → frying → deoiling → quick-freezing → packaging. The entire line has a reasonable structural design , with smooth connections between each process, facilitating later maintenance and capacity expansion.

1. The screw peeling and washing machine efficiently removes potato skins while simultaneously washing them with water as the spiral and brush rotate.
2. Slicing machine can cut peeled potatoes into sizes of 6*6mm, 8*8mm, 9*9mm, and 10*10mm.
3. The water bucket elevator washes and removes surface starch from potatoes, reducing the risk of oxidation and spoilage, and smoothly transports potatoes to the next process.
4. Bubble washing machine uses bubbles to agitate the fries in the washing tank, deeply removing impurities and starch, and preventing the fries from sticking together.
5. Blanching machine uses 60-95℃ high-temperature hot water to deactivate enzymes, preventing subsequent discoloration of the fries, and simultaneously altering the internal structure for a crispier texture.
6. The water cooling machine quickly cools the blanched fries, further adjusting the internal structure and optimizing the texture.
7. The air dryer machine deeply removes surface moisture from the fries, preparing them for subsequent processes.
8. Continuous frying machine quickly fry French fries in cooking oil at 160-180℃ for 30-40 seconds, ensuring a crispy texture and taste;
9. Vibration deoiling machine uses vibration to quickly remove surface oil, significantly reducing the oil content of the fries;
10. The rapid air dryer further removes residual surface oil;
11. An IQF fluidized freezer uses high-speed airflow to suspend the fries in a fluidized state, allowing for rapid freezing through full contact with cold air;
12. Automatic weighing and packing machine accurately packages the finished products to preset weights.

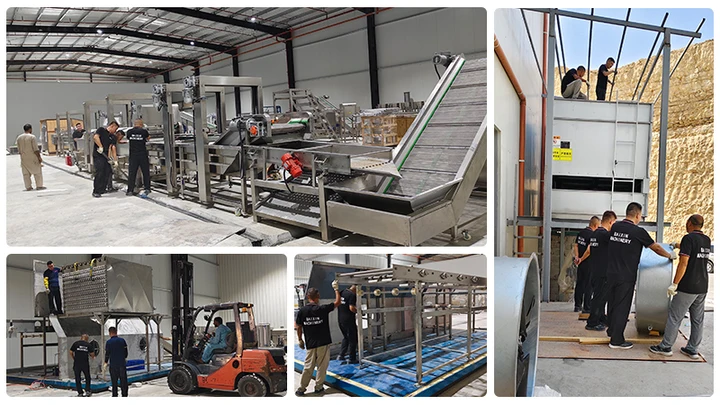

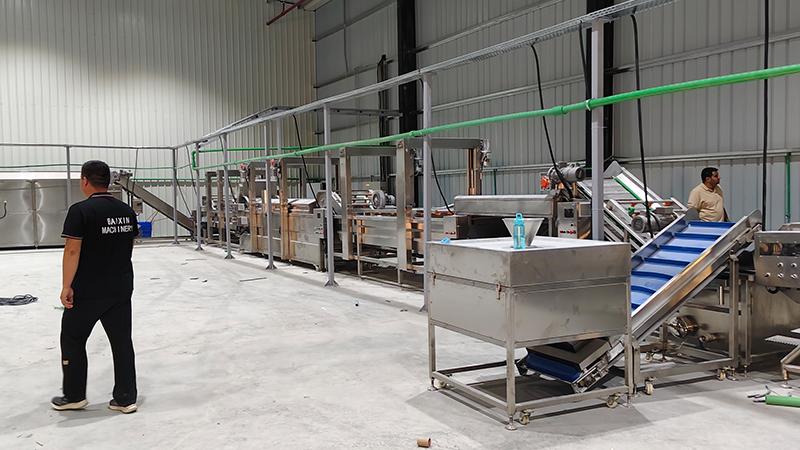

III.Installation Site

At the initial stage of the project, Baixin Machinery provided a complete500kg/h quick-frozen French fries production line equipment layout diagram based on the client's factory conditions and process requirements. The layout of equipment placement , logistics flow and operating areas were systematically planned to improve the utilization rate of factory space and overall operating efficiency.

During the installation process , Baixin Machinery engineers were stationed on-site throughout , ensuring the orderly progress of everything from equipment placement, electrical system connection, and pipeline installation to the integrated commissioning and trial operation of the entire line, all according to the established process plan and implementation schedule. After 15 days of intensive and well-organized installation , commissioning, and parameter optimization, the production line operated stably, achieving the expected production capacity. The finished frozen French fries met the customer's requirements in terms of appearance, taste, and product consistency , and received high praise from the customer.

IV.After-Sales Service Commitment of Henan Baixin Machinery Equipment Co., Ltd.

Following the successful completion of the on-site installation, commissioning, and delivery of the production line for this Oman project, Henan Baixin Machinery Equipment Co., Ltd. will continue to act as a long-term partner, providing customers with ongoing after-sales service and technical support to ensure stable equipment operation and contribute to the long-term development of customer projects.

1.Operation and Maintenance Support

Baixin Machinery has provided systematic training on machine operation, basic repair and maintenance to customer operators , and continues to provide technical guidance during subsequent production processes to help customers further master the key points of equipment operation, daily maintenance and safety management, reduce operational risks and improve production stability.

2.Maintenance Service and Response Mechanism

To address potential maintenance needs during equipment use, Baixin Machinery has established a rapid response mechanism. This mechanism can provide remote guidance or on-site service support based on the actual situation, minimizing downtime and ensuring the smooth implementation of customers' production plan

3.Quality and Warranty Commitment

The entire production line of this project enjoys a one-year quality warranty service. During the warranty period, if equipment failure occurs due to reasons related to equipment manufacturing or process design, Baixin Machinery will provide timely repair or parts replacement services in accordance with the service commitment to ensure the customer's production.

The successful delivery of the 500kg/h quick-frozen French fries production line project in Oman demonstrates Baixin Machinery 's mature experience in complete sets of quick-frozen French fries equipment, as well as its comprehensive capabilities in technical support and overseas installation . If you are also planning to start a French fries processing business, please feel free to contact Baixin Machinery. We will arrange a professional project manager to provide you with a customized solution.
